PRODUCT

Infrared IR Remote Extender Repeater 1 Receiver 1 Emitter

P/N: IRE01
Details
Remote Control IR Repeater/ IR Extender with 1 Receiver & 1 Emitter ( for 1 AV Device ) & USB 5V adaptor

Remote Control IR Extender Repeater can be used with weak IR Remote control signal from players such as IPTV. CD/VCD/DVD/ Blu-ray, Home System, Television, Set up box, recorder, CATV, Karaoke system, etc. It is also recommended for Players/ Equipments which are concealed in console or cabinet.

This product allows you to control A/V component by the existing IR controller, such as amplifier, cable box, stereo receiver, Satellite TV receiver, CD player, DVD player, Blue-ray player or other components which are controlled by IR singal.
5V USB AC Power adapter (US plug)
30-60KHz operating range
Input: AC 100-240V, 50-60Hz

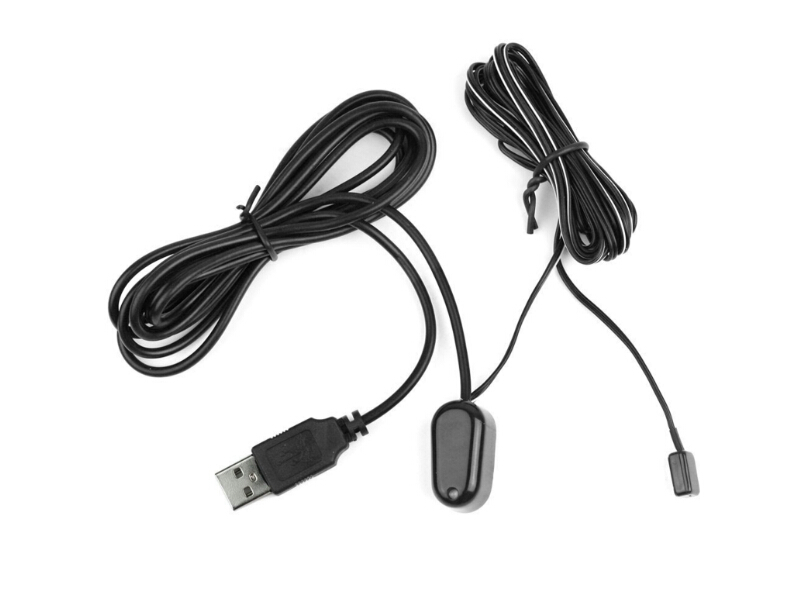

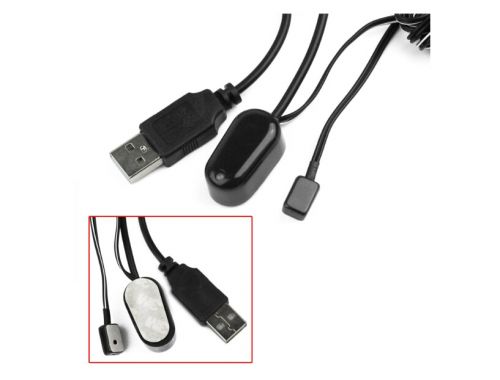

One head line with 1 Receiver and 1 Emitter
Receiver: with a convenient IR confirmation LED and pick up the signal from the remote controller
Emitter: send the signal to the A/V components
NOTE: Please stick the IR Emitters on the IR interface of devices you want to control remotely.

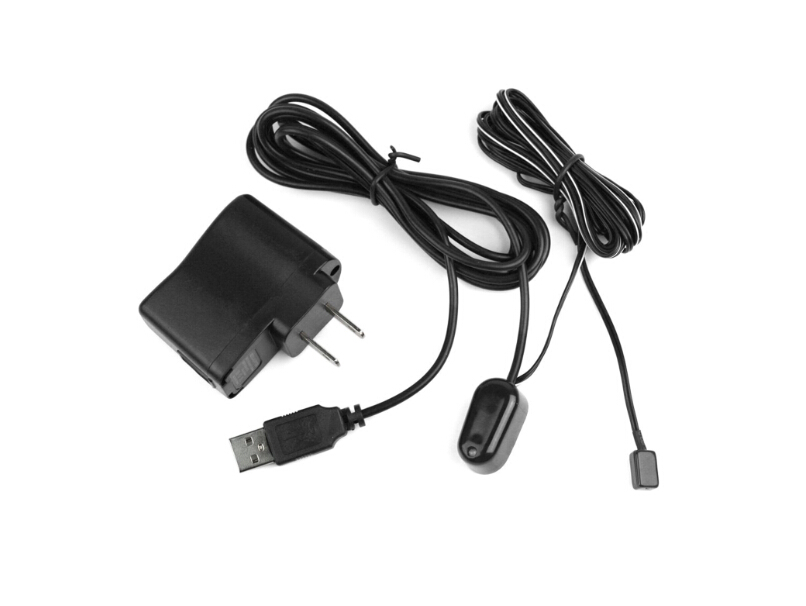

PACKAGES :
1. USB Adaptor 5V 500mA
This is powered by USB adaptor ( Included ) can also be powered by connecting the USB cable to the USB port on your AV Equipment.
2. IR Receiving Head distributing :
(1). USB ( use to connect to USB 5V adaptor or AV devices for power ) Length : 2m
(2). IR Emitter ( Emitter to be stick on the IR Point of your AV equipment ) length : 3m

INSTALLATION :
1. Clean the surface of your AV equipment. Stick the IR Emitter on the IR point of your AV Equipment
2. Place the IR Receiver such a way that it is facing your remote control. It is advisable to place away from Plasma or CCFL screen as it may affect the remote control signal.
3. Connect the USB to USB Adaptor/ USB port of AV Equipment for power
4. Power up & all is ready to go.

TECHNICAL SPECIFICATION :
Receiving Frequency ( Broadband ) : 34KHz ~ 60KHz
Emitting Frequency ( Broadband )  : 38 KHz - 56KHz
Receiving Distance  : 8 meter
Emitting Distance : 10-20 cm
Power Consumption : < 30mA
Dimension for Receiver & Emitter : 31 (L)×17 (W)×13 (H) mm, 13 (L)×8 (W)×5.5 (H) mm
Input AC 100-240V/ Output DC 5V : USB 5V 500mA
