Infrared IR Remote Extender Repeater 1 Receiver 8 Emitter

P/N: IRE08
连接器是相互链接部分可离合或者是替换的元件是所有讯号间的桥梁，连接器的性质……
Details

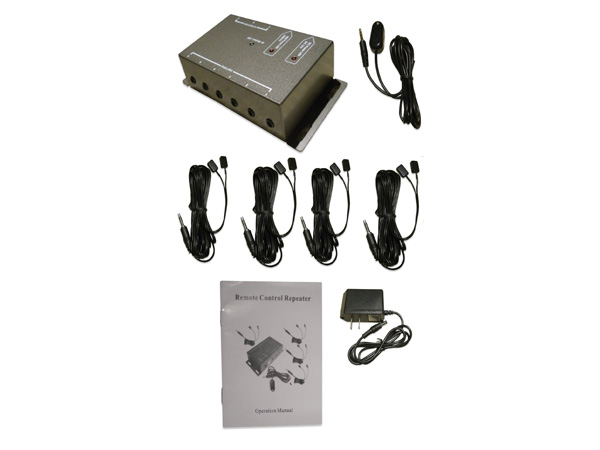

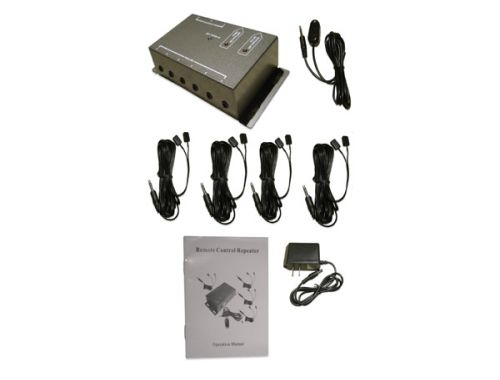

Remote Control IR Repeater/ IR Extender with 1 Receiver & 8 Emitters ( for 8 AV Devices & 1 Display ) with USB 5V adaptor


Remote Control Infrared Extender/ Infrared Repeater is a product which amplifies the IR signal of your appliances. By connecting this repeater to your appliances, you may be able to conceal your appliances such as in your TV console or cabinet.

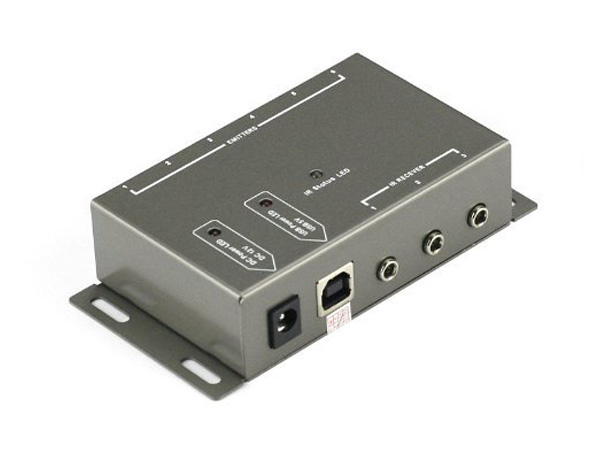

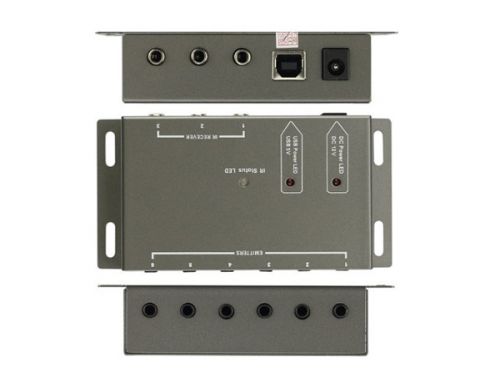

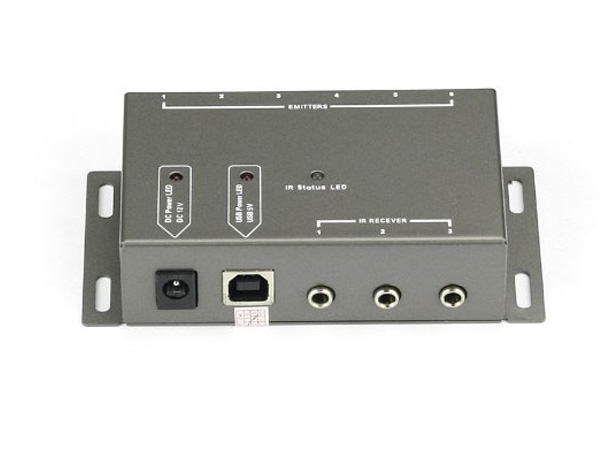

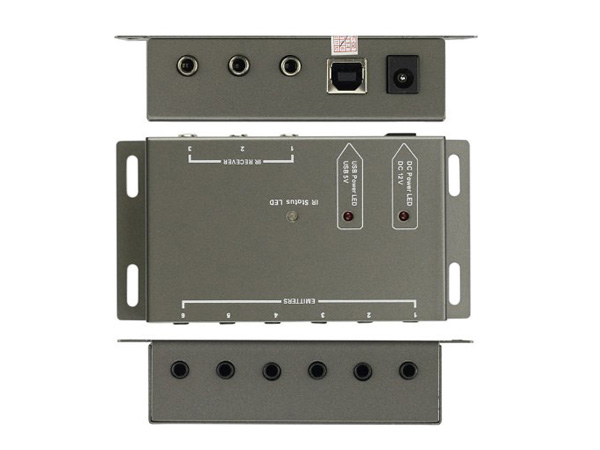

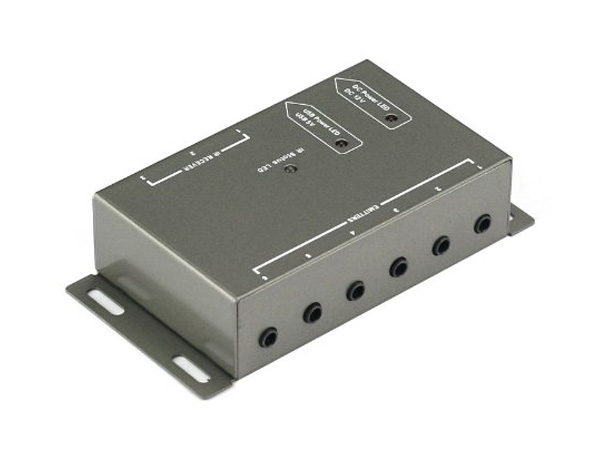

There are 3 main parts in this IR Extender/ IR Repeater namely Infrared Emitter ( IR Emitter), Infrared Receiver ( IR Receiver ) & Infrared Transmitter.

The emitter is to be pasted on the IR point of your appliances while the receiver is placed in a position of which it communicate signal with your remote control. The IR transmitter box process signal received from the Receiver and generate signals out to Emitters which in turn to your Players/ Appliances.

FEATURES
High Sensitivity - Real time transmission without any delay with its high sensitivity sensor.
CFL Friendly - This unit can be installed in an area with compact fluorescent lighting and work in most lighting environments
Remote Indication light on IR Receiver - Green being power connected while flashing red indicates the signal is being sent.
Broad bandwidth - With this feature, it is compatible with almost all the electronics appliances in the market with its wide frequency range
Size - Small & Solid design
Low Power - 5V DC, 30mA max

INSTALLATION

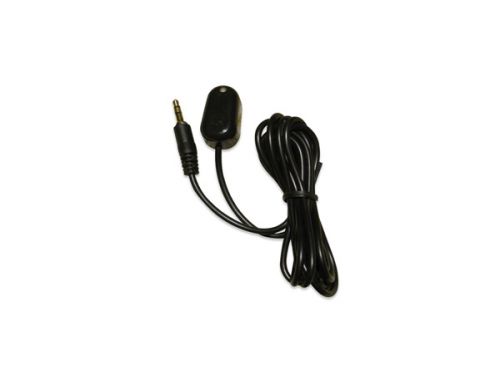

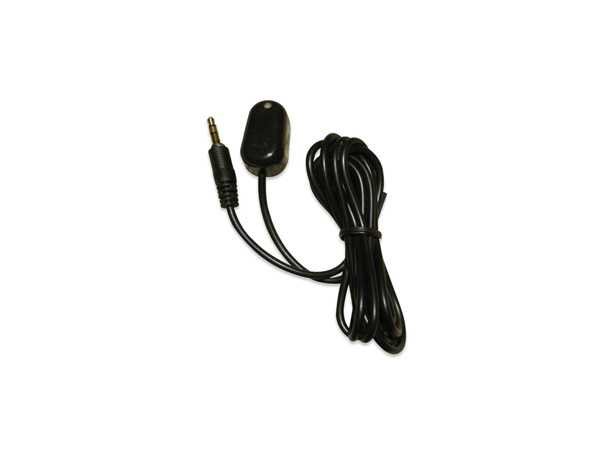

IR RECEIVER
( Note: Plasma Displays emit IR frequencies during use and may cause interference. It is advised to distance the IR Receiver from any Plasma TV. Ability to control multiple appliances at various locations up to 10m. )

Connect IR Receiver to any of the 3.5mm IR ports on the IR Transceiver box. If 2 or more IR receivers are connected, the distance between 2 IR Receivers should not be less than 6 m to avoid interference. ( Only 1 IR Receiver for this item )

(Note : Maximum of 6 IR Receivers can be connected to the 3 Ports of 3.5mm Jack ( on Transceiver ) by using 3.5mm Splitter cable 1 Male to 2 Female. Three 3.5mm Splitter cables connect to transceiver to obtain 6 ports of 3.5mm )

Remote Control from the room is achievable if the AV cable from TVs ( Room ) is connected to the Player/ Appliance ( Hall ). ( I.e Sharing a Player/ Appliances to watch in different rooms ) See Picture.

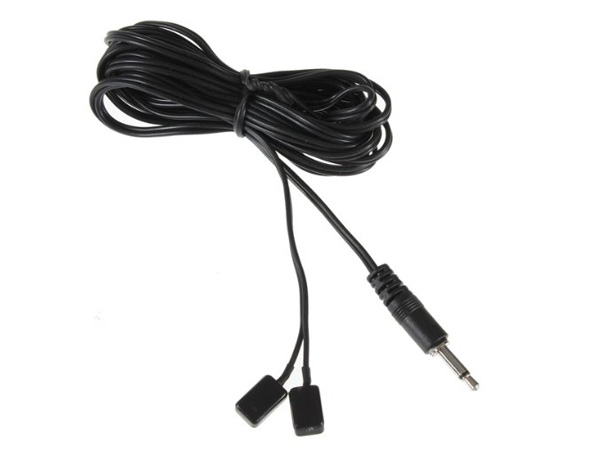

IR EMITTERS
Insert Emitter cable to any of the Emitter Input Ports on Transceiver box. ( Optional : Maximum of 24 emitters can be connected to the 6 Transceiver Emitter Input Ports, using 4 Emitters head per cable type ) ( 8 Emitters for this model BU108 )
