Infrared IR Remote Extender Repeater 1 Receiver 4 Emitter

P/N: IRE04
Details
Remote Control IR Repeater/ IR Extender with 1 Receiver & 4 Emitters ( for 4 AV Devices & 1 Display ) with USB 5V adaptor

Remote Control Infrared Extender/ Infrared Repeater is a product which amplifies the IR signal of your appliances. By connecting this repeater to your appliances, you may be able to conceal your appliances such as in your TV console or cabinet.

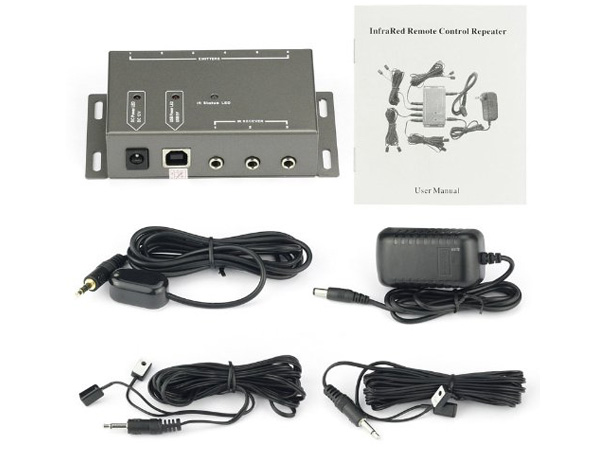

There are 3 main parts in this IR Extender/ IR Repeater namely Infrared Emitter ( IR Emitter), Infrared Receiver ( IR Receiver ) & Infrared Transmitter.

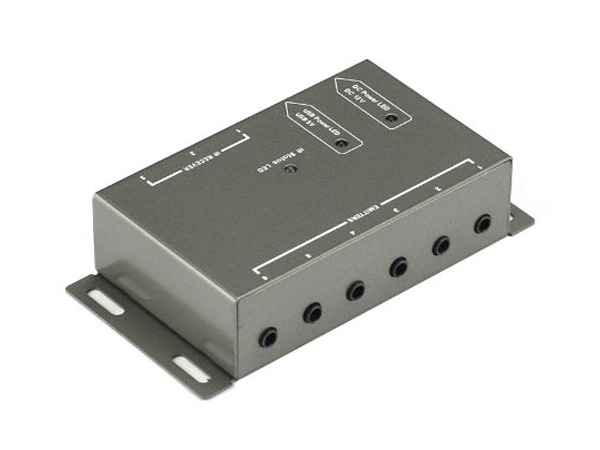

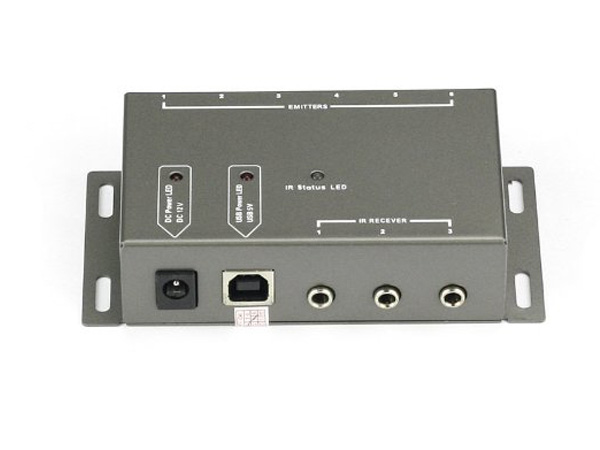

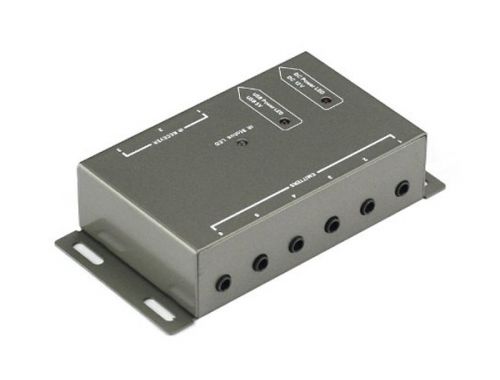

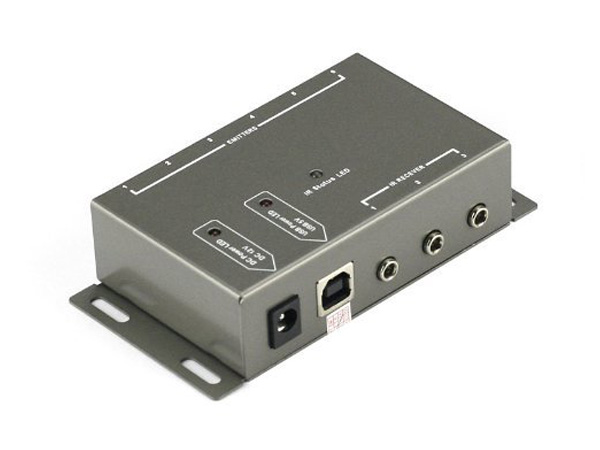

The emitter is to be pasted on the IR point of your appliances while the receiver is placed in a position of which it communicate signal with your remote control. The IR transmitter box process signal received from the Receiver and generate signals out to Emitters which in turn to your Players/ Appliances.

FEATURES
High Sensitivity - Real time transmission without any delay with its high sensitivity sensor.
CFL Friendly - This unit can be installed in an area with compact fluorescent lighting and work in most lighting environments
Remote Indication light on IR Receiver - Green being power connected while flashing red indicates the signal is being sent.
Broad bandwidth - With this feature, it is compatible with almost all the electronics appliances in the market with its wide frequency range
Size - Small & Solid design
Low Power - 5V DC, 30mA max

INSTALLATION
IR RECEIVER
( Note: Plasma Displays emit IR frequencies during use and may cause interference. It is advised to distance the IR Receiver from any Plasma TV. Ability to control multiple appliances at various locations up to 10m. )

Connect IR Receiver to any of the 3.5mm IR ports on the IR Transceiver box. If 2 or more IR receivers are connected, the distance between 2 IR Receivers should not be less than 6M to avoid interference. ( Only 1 IR Receiver for this item )

Remote Control from the room is achievable if the AV cable from TVs ( Room ) is connected to the Player/ Appliance ( Hall ). ( I.e Sharing a Player/ Appliances to watch in different rooms ) See Picture.

IR EMITTERS
Insert Emitter cable to any of the Emitter Input Ports on Transceiver box. ( Optional : Maximum of 24 emitters can be connected to the 6 Transceiver Emitter Input Ports.

Stick the emitter near to the IR Point of Player/ Appliances. Only one emitter head is applicable on each Player/ Appliance

Operate the Remote Control faces the IR Receiver. Keep moving the IR Emitter on Player/ Appliance to achieve best signal transmission. Stick the Emitter to the point which produced the best signal. See Picture.

TECHNICAL SPECIFICATION:
Receiving Frequency Range  : 34 KHZ to 60KHZ
Emitting Frequency Range : 38 KHZ to 56KHZ
Receiving Distance : 8 Meter
Emitting Distance  : 100-200mm
Power Consumption : 5VDC, 30mA max.
Dimension : IR Receiver 31 (L) × 17 (W) × 13 (H)mm  IR Emitter 13 (L) × 8 (W) × 5.5 (H)mm
IR Transceiver Box 90 (L) × 55 (W) × 26 (H) mm
Cable Length :  IR Receiver 1.5m, IR Emitter 3m, USB cable 1m
