HDMI Infrared IR Extender Kit

Infrared HDMI IR Extender can control your IR remote controlled devices in closet or in other rooms.

This IR Repeater supports IR frequency from 20 kHz to 60 kHz which covers nearly all the devices.

Power Free. No Power Adapter Necessary (Uses power over HDMI Cable from HDMI source unit)

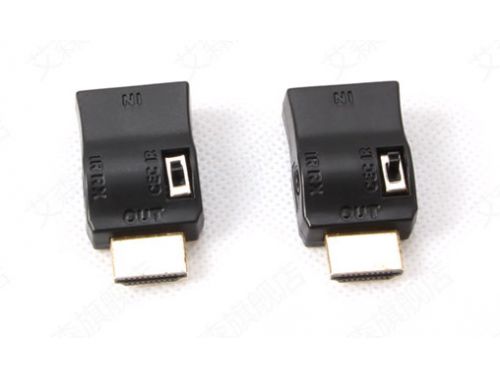

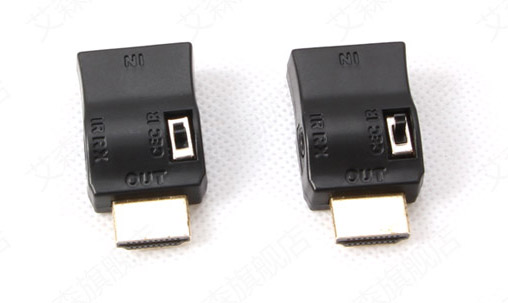

Control: To choose the CEC/IR extends function by manual ( it needs to put the two IR Adapter switch to IR status).

Features:

Red LED: flashes when a signal is received
Green LED: on when no signal is present
Transmit IR: up to 70 feet depending on HDMI Cable used.
IR Signal Receiving from Remote: 30 feet
IR Frequency: 20-60 kHz
Installation Use one HDMI Cable to connect Both IR HDMI Adapter.
Connect one of the IR Adapter to an HD Source, the other to a Display.
Connect IR Receiver Cable to the IR Adapter on the Display.
Connect IR Transmitter Cable to the IR Adapter on the HD Source.
Make sure both IR HDMI Adapter be set-Inch the "IR" position.

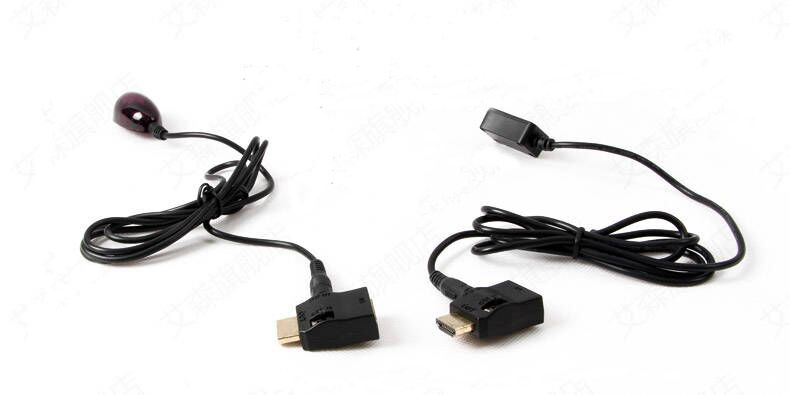

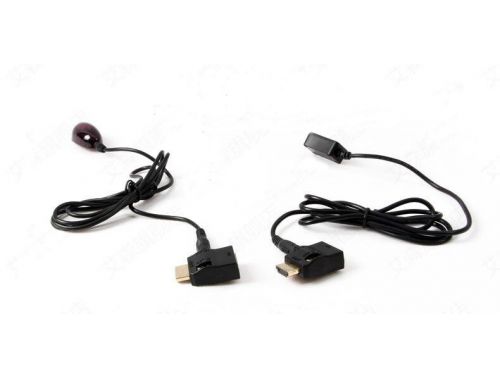

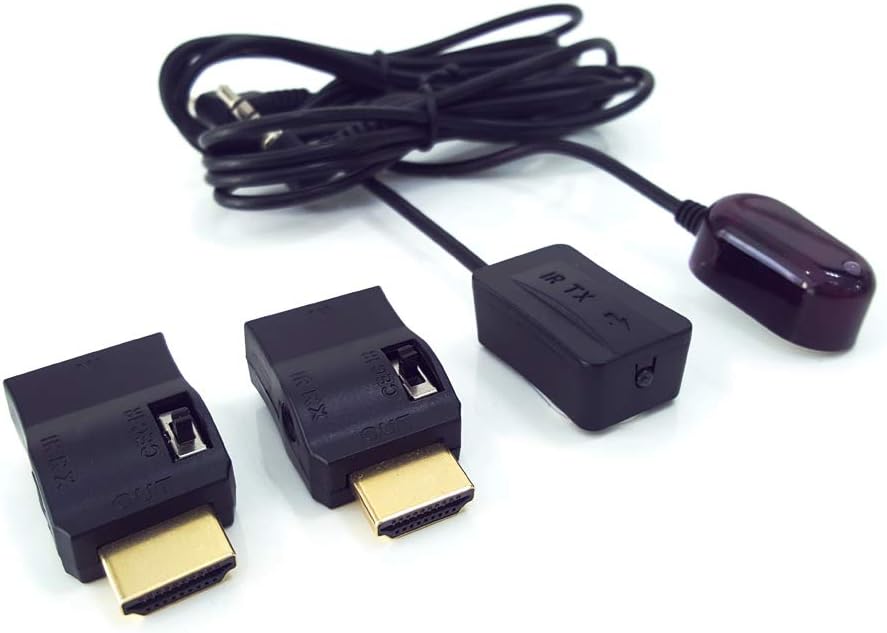

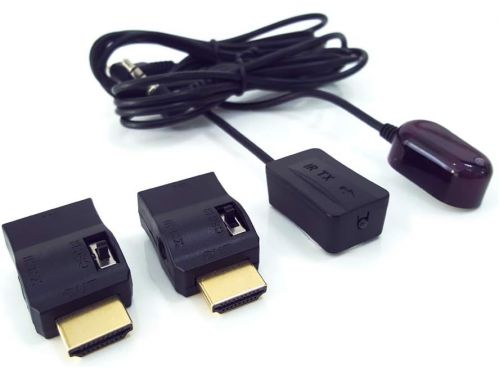

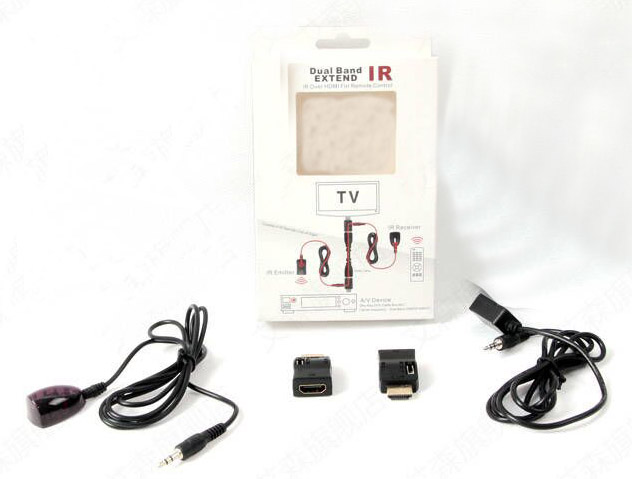

The HDMI IR Extender includes:

1 IR Receiver cable(3.93ft)
1 IR Emitter cable(3.93ft)
2 IR HDMI Adapters
1 User Manual
