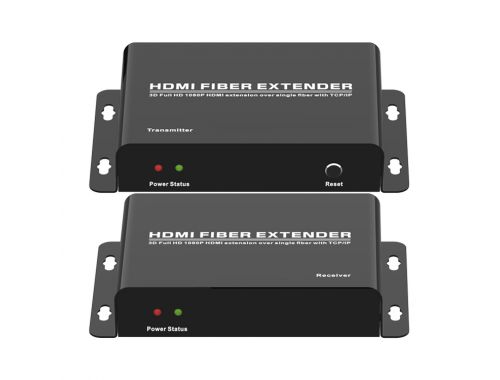

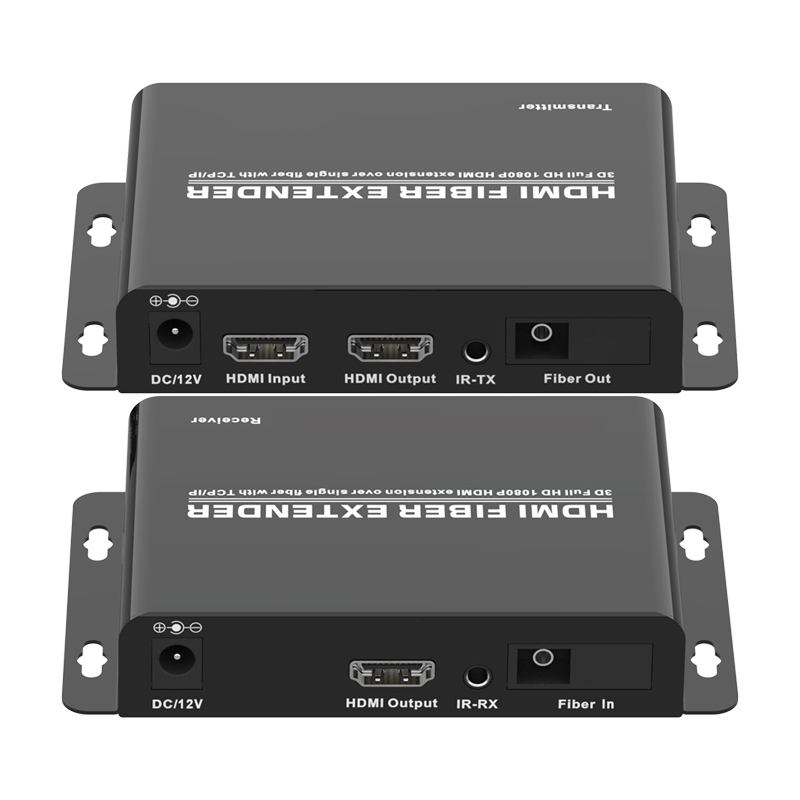

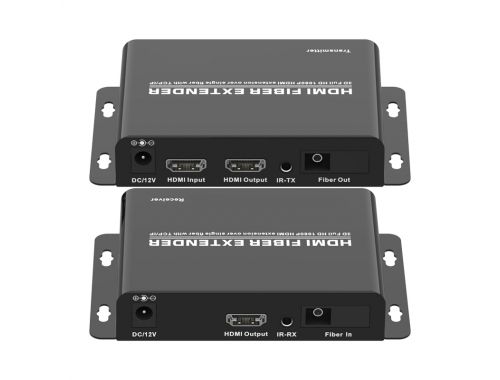

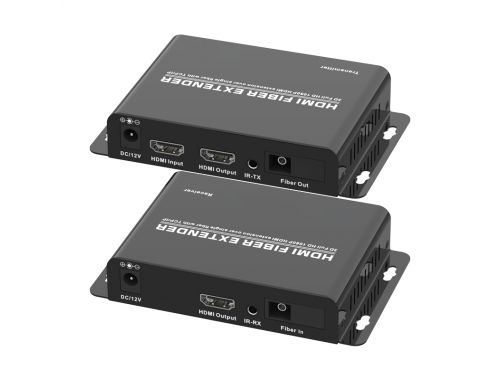

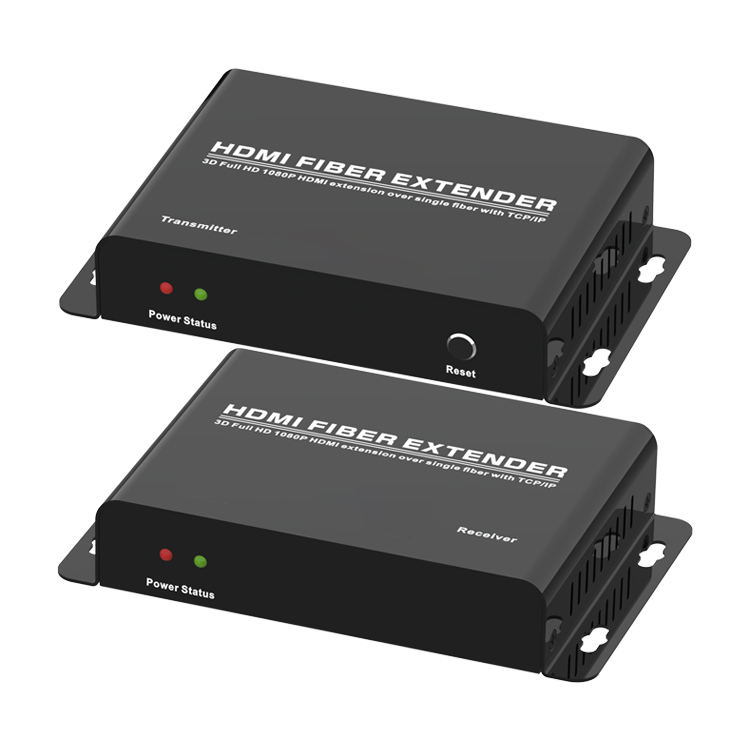

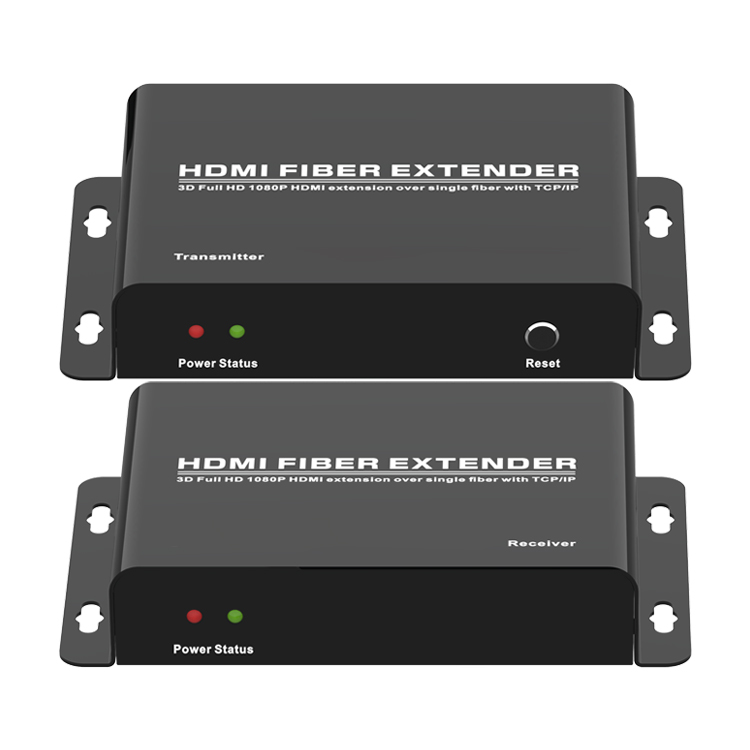

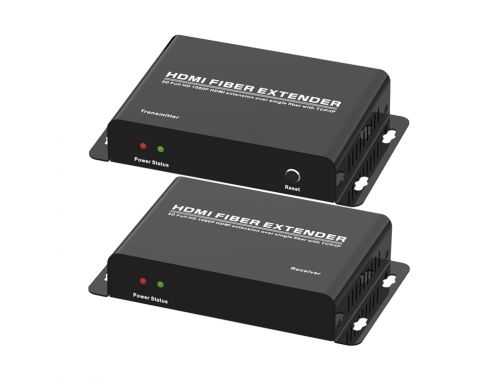

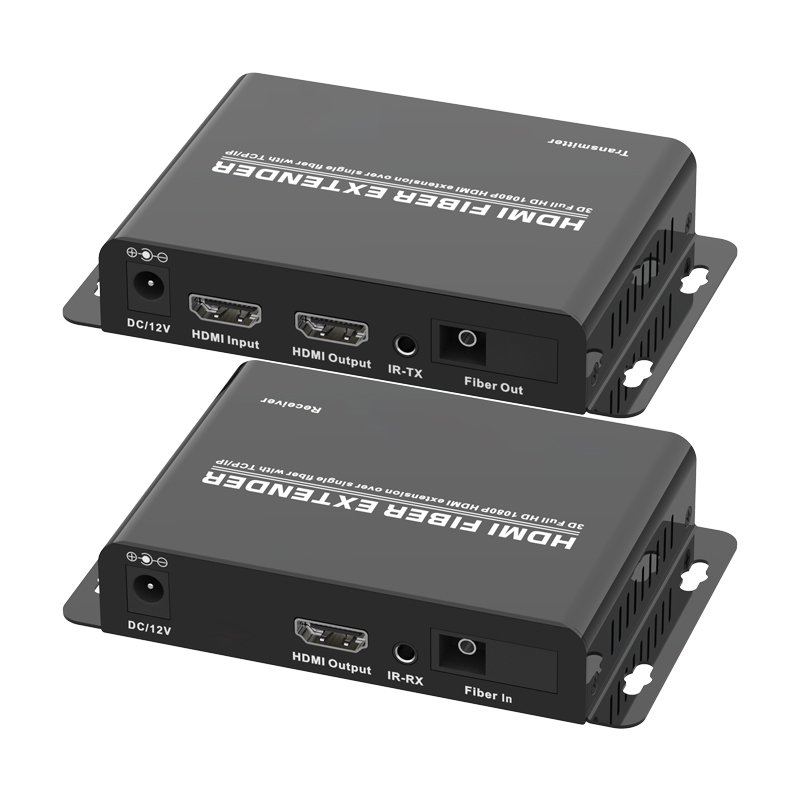

HDMI Fiber Extender 20KM

1.0 INTRODUCTION

The HDMI Extender over single fiber is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing fiber cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over one fiber extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 200 meters outside using the HDMI extender.

2.0 FEATURES

1.Signal transmission :SC fiber(recommended) cables up to 20000

meters instead of HDMI cables are connected between TX and RX

Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support input/output resolution:480p,576p,720p,1080p.

4.Support point-to-point mode, one point-to-many mode.

5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum of 253 receivers.

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.

7.Support IR remote control 20~60KHz,NEC.

8.Installs in minutes,No loss of quality.

3.0 PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter------------------1 PCS

2.HDMI Receiver---------------------1 PCS

3.IR-TX ---------------------------------1 PCS

4.IR-RX ---------------------------------1 PCS

5.Power supply------------------------2 PCS

6.User manual-------------------------1 PCS
