1.0 INTRODUCTION

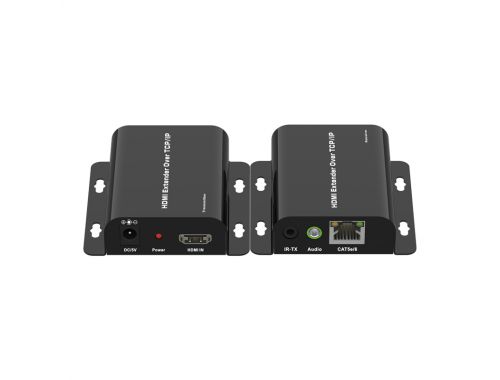

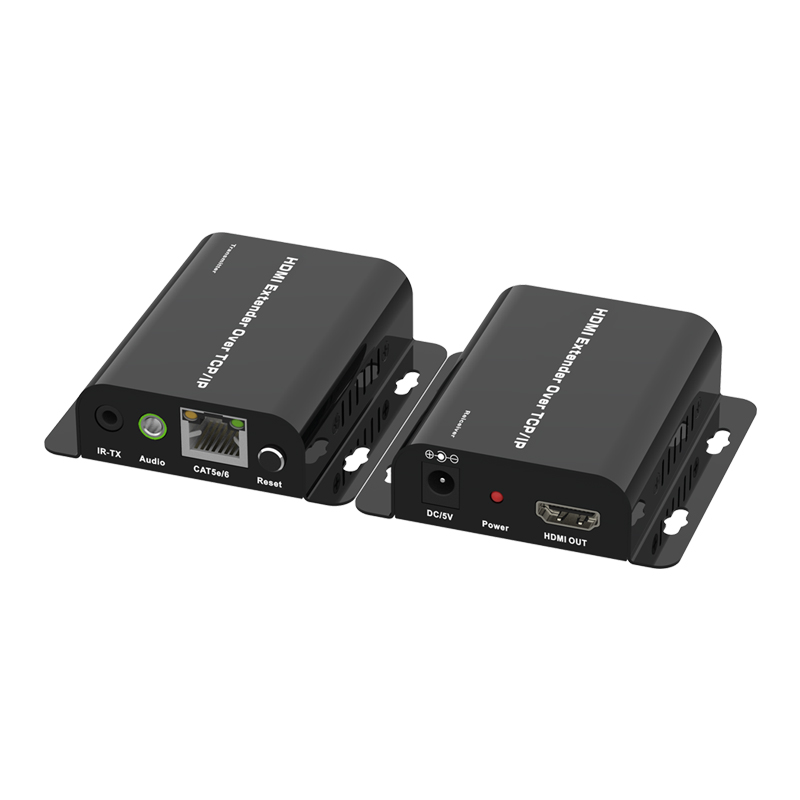

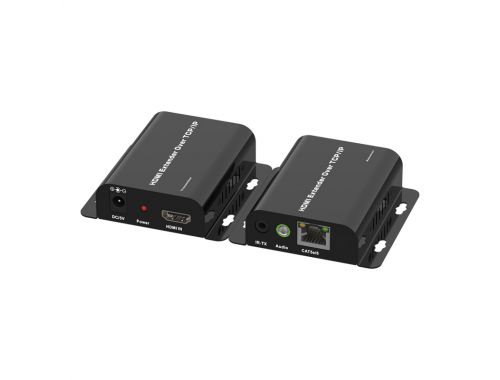

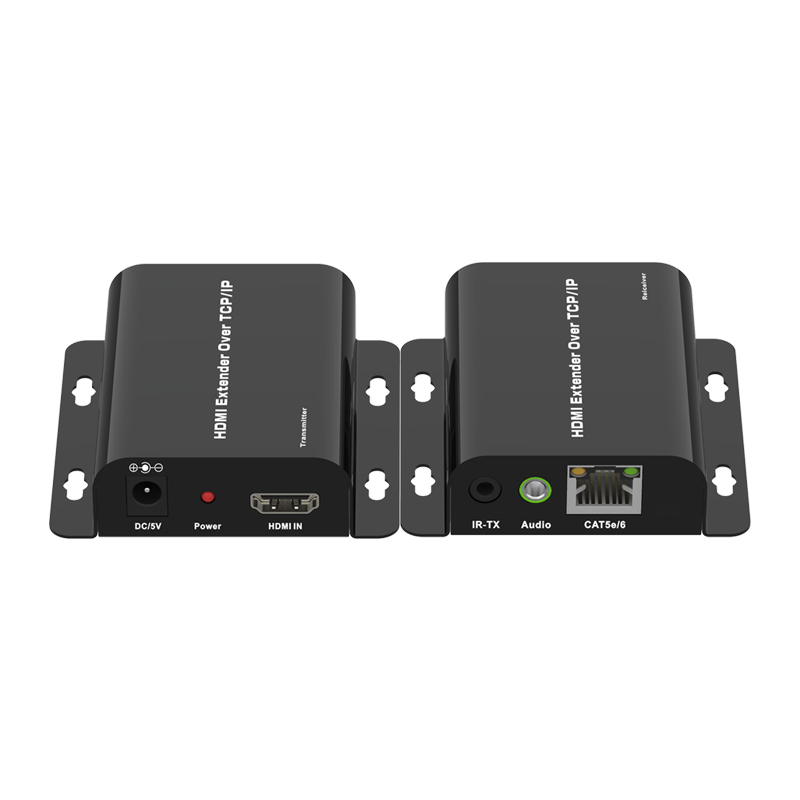

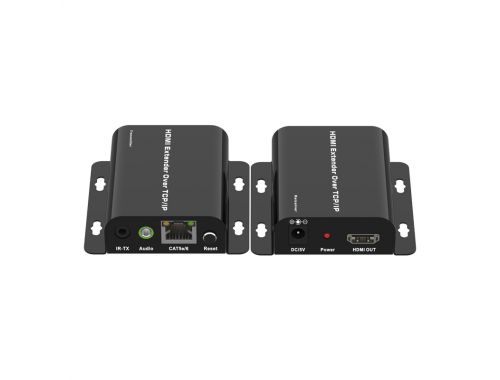

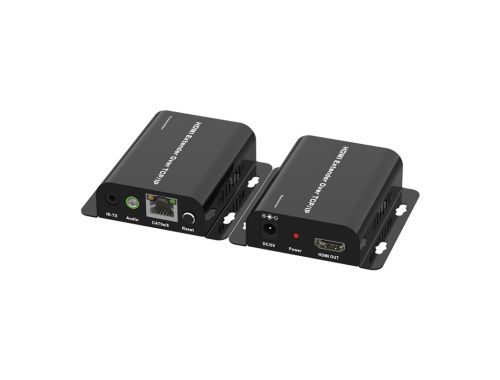

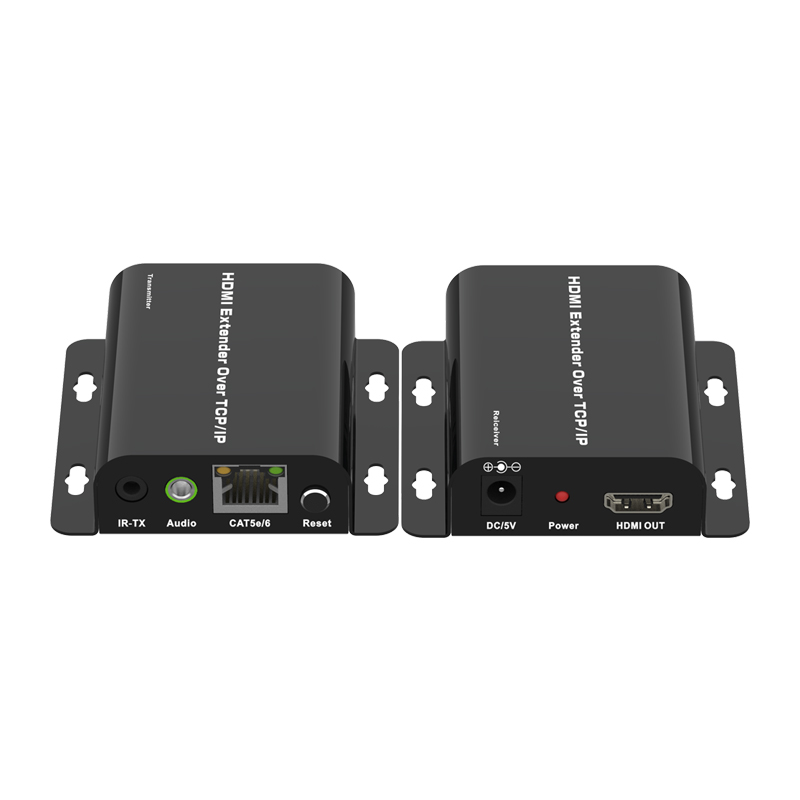

The HDMI Extender over single CAT5e/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5e/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over ONE CAT5e/6 extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the source which is 200 meters outside using the HDMI extender.
2.0 FEATURES
1.Signal transmission :CAT5e or CAT6(recommended) cables up to 200
meters instead of HDMI cables are connected between TX and RX
Extender.
2.Support HDMI1.3,HDCP 1.2 protocol compliant.
3.Support video input : 24/50/60fs/1080p/720p/576p/480p.
4.Support video output : 24/50/60fs/1080p/720p/576p/480p.
5.Support CEC.
6.Support 20~60KHz IR working.
7.protocol compliant TCP/IP one transmitter and multiple receivers,
with a maximum of 253 receivers.
8.Audio format support :
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
9.No loss of quality.
10.Installs in minutes.
11.Need DC/5V power supply.
3.0 PACKAGING ACCESSORIES:
When first unpacking your extender please check to see if the following items are included:
1.HDMI Transmitter------------------1 PCS
2.HDMI Receiver---------------------1 PCS
3.IR-TX ---------------------------------1 PCS
4.IR-RX ---------------------------------1 PCS
5.Power supply------------------------2 PCS
6.User manual-------------------------1 PCS
