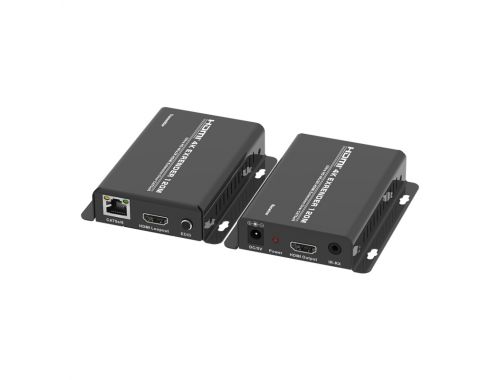

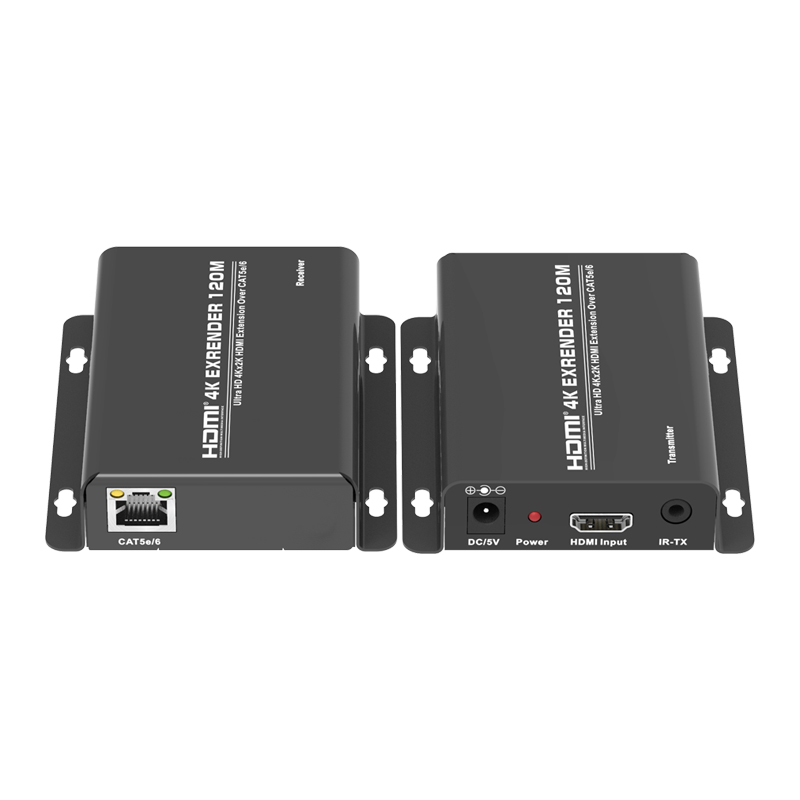

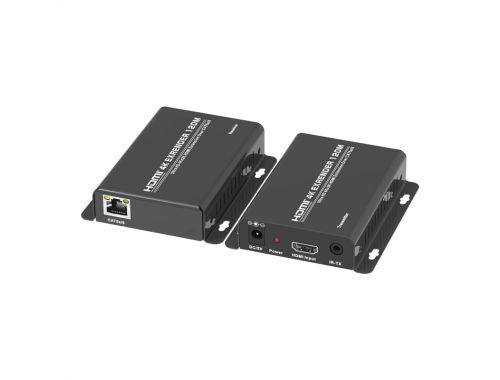

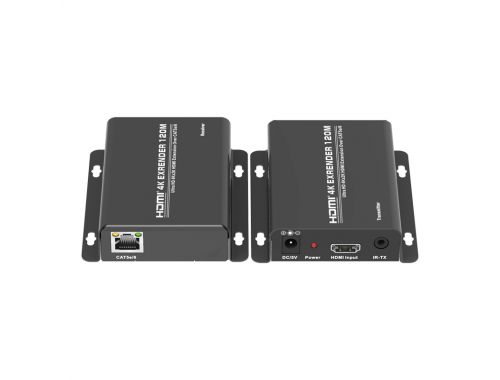

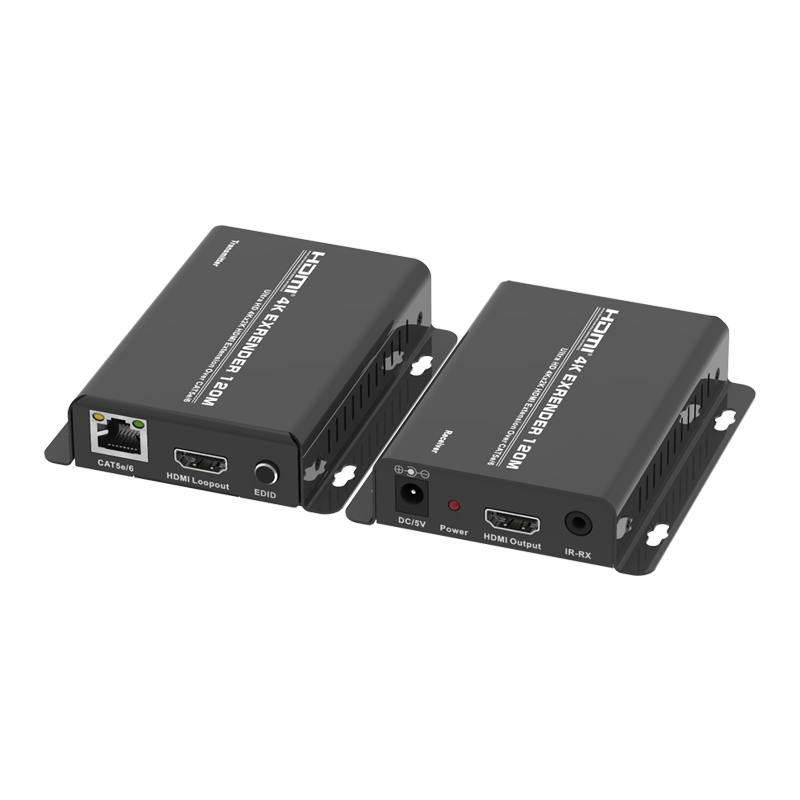

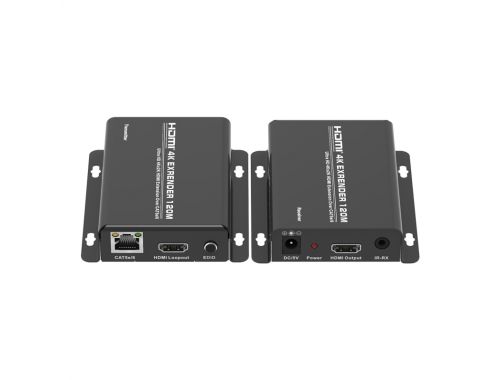

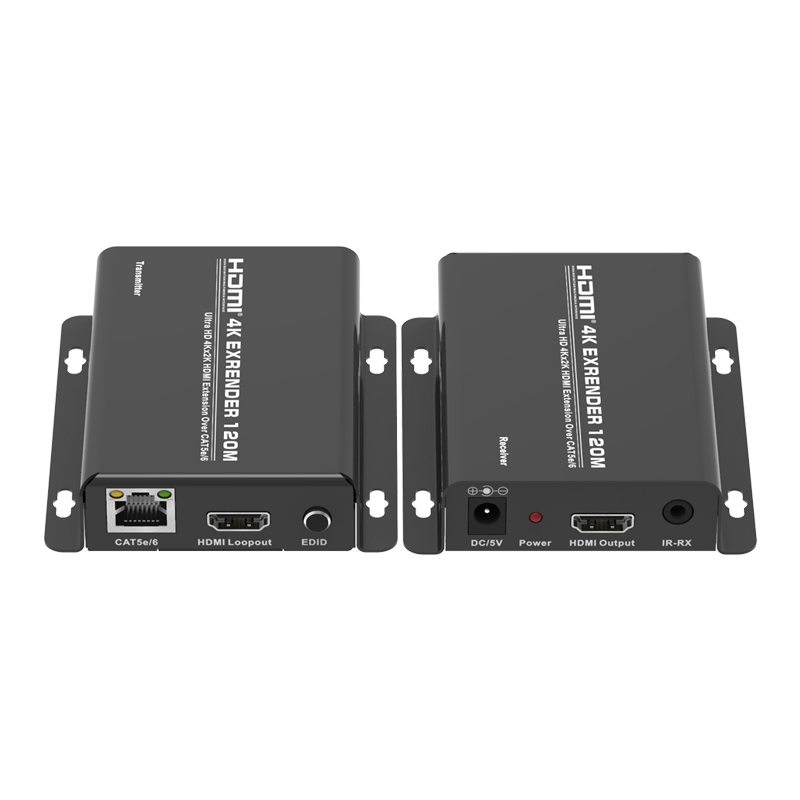

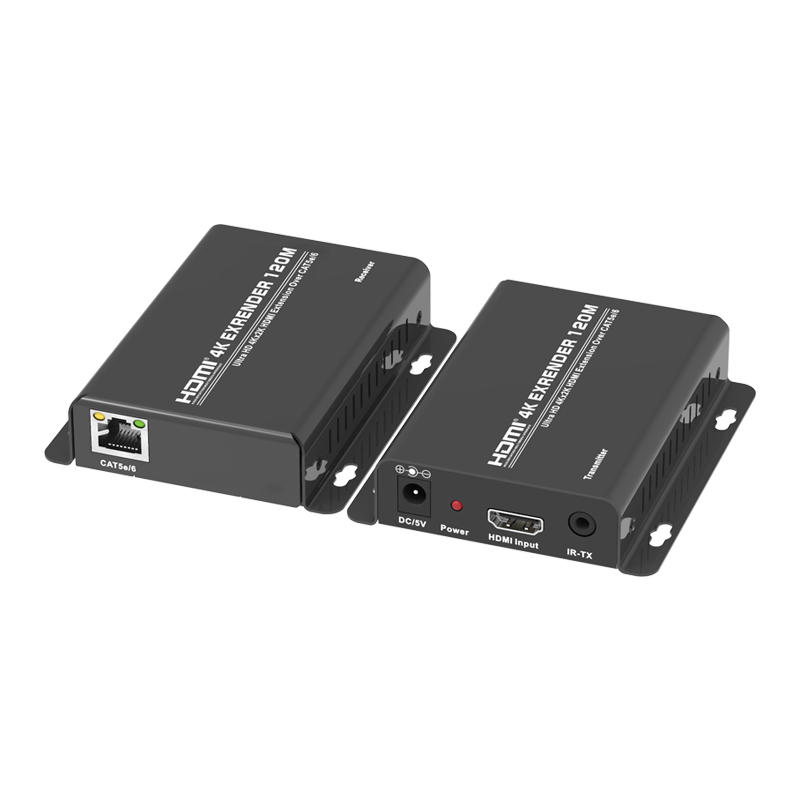

HDMI 4Kx2K Extender 120M with IR+Loopout

1.0 Introduction

The 4K 120M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 120 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

2.0 Features

1.Signal transmission :cat5e or cat-6(recommended) cables up to 120

  meters instead of HDMI cables are connected between TX and RX

  Extender;

2. Support HDMI1.4v;

3. Support input/Output Resolution :

4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;

4. Support 20~60KHz IR re-transmitting;

5. Support transmitter with loopout;

6. Audio format support :

   DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

8.Installs in minutes,no loss of quality;

9.Need DC/5V power supply.

3.0 Packaging Accessories

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter ------------------1PCS

2.HDMI Receiver ---------------------1PCS

3.IR Receiver --------------------------1PCS

4.IR Transmitter -----------------------1PCS

5.Power supply-------------------------2PCS

6.User manual--------------------------1PCS
