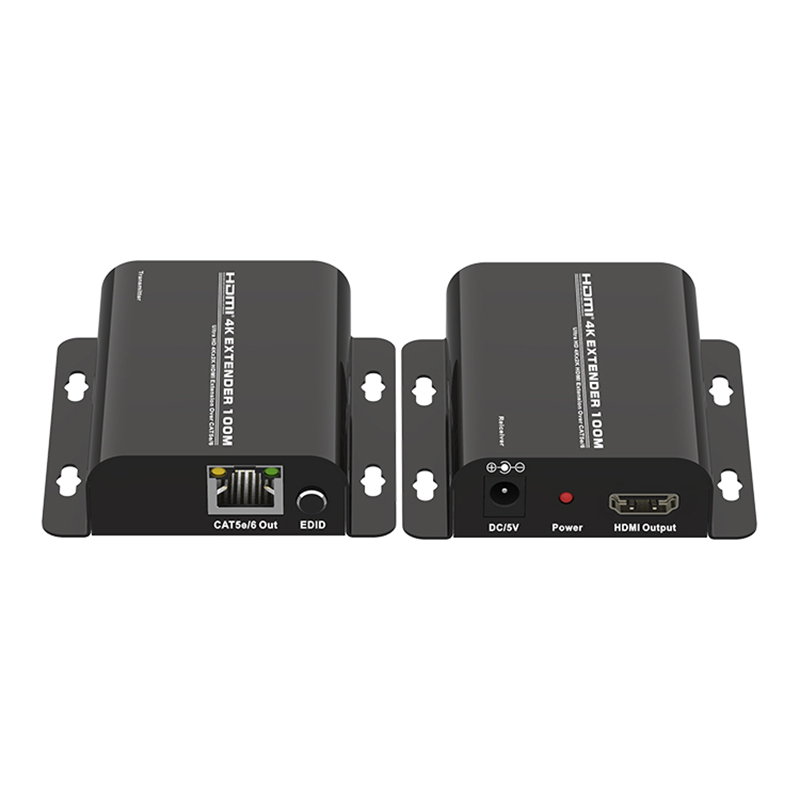

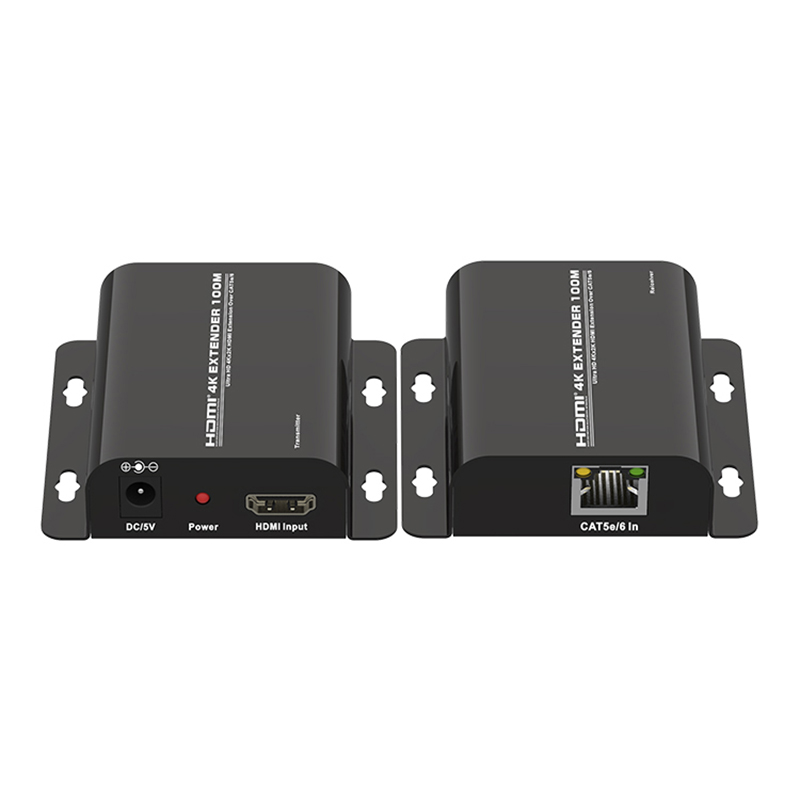

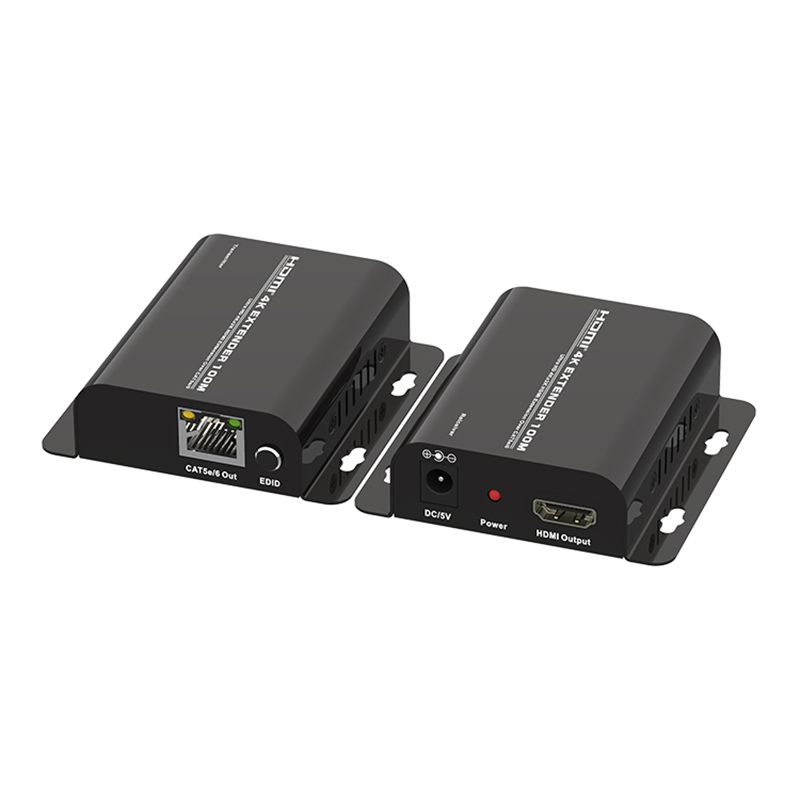

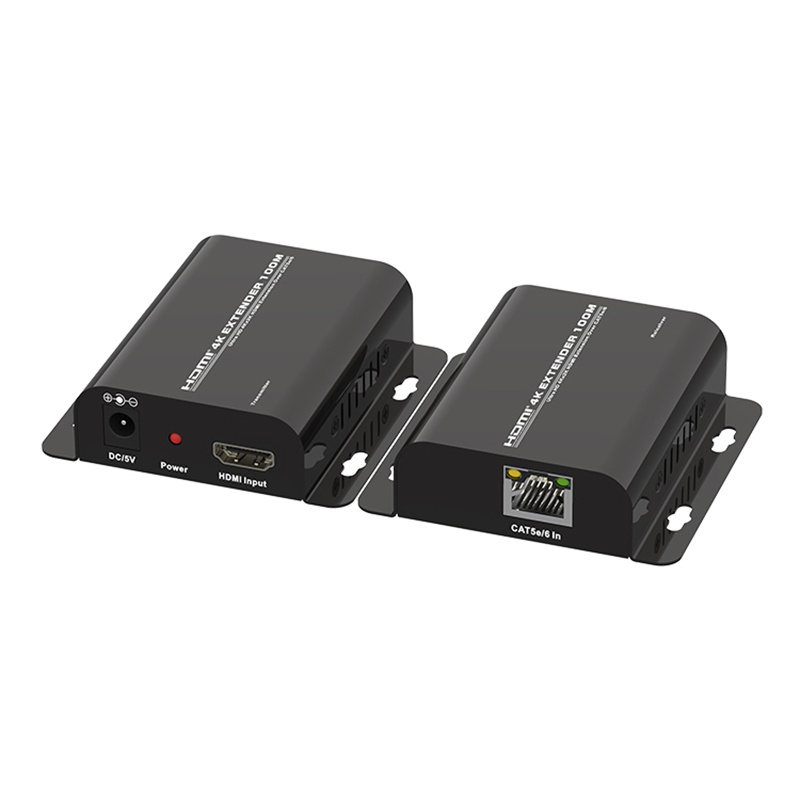

HDMI 4Kx2K Extender 100M

1.0 Introduction

The 4K 100M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 100 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

2.0 Features

1.Signal transmission :cat5e or cat-6(recommended) cables up to 100

  meters instead of HDMI cables are connected between TX and RX

  Extender;

2. Support HDMI1.4v;

3. 3.Support input/Output Resolution :

4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;

4. Support CEC;

5. Audio format support :

   DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

6.No loss of quality;

7.Installs in minutes;

8.Need DC5V/1A power supply.

3.0 Packaging Accessories

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter -------------------1PCS

2.HDMI Receiver ----------------------1PCS

3.Power supply-------------------------2PCS

4.User manual--------------------------1PCS
