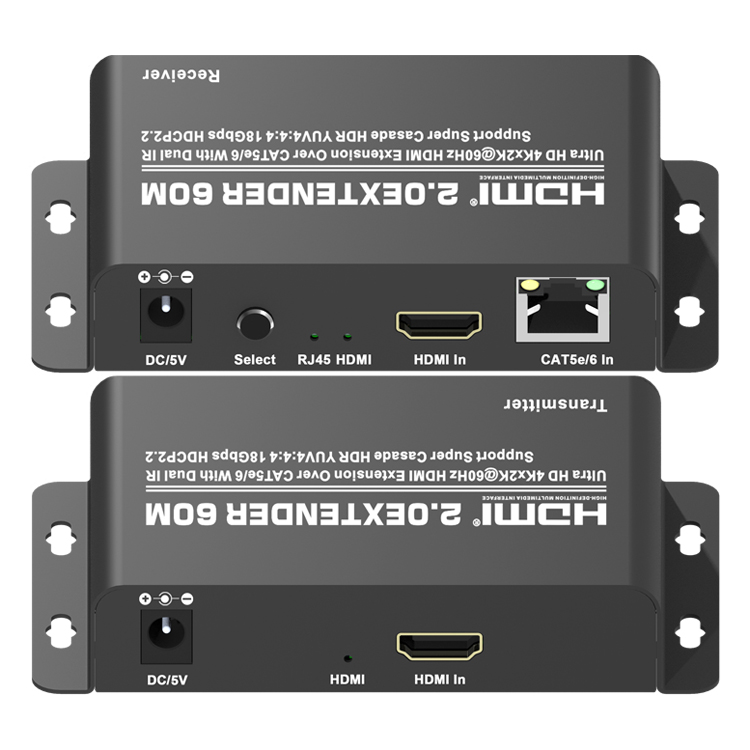

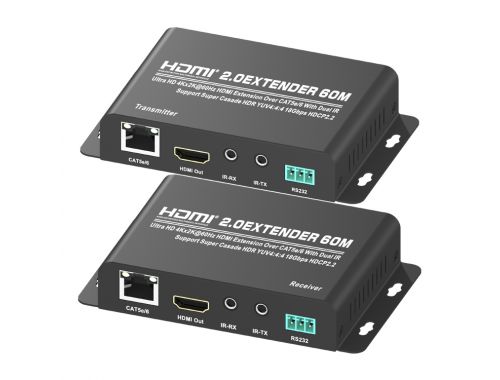

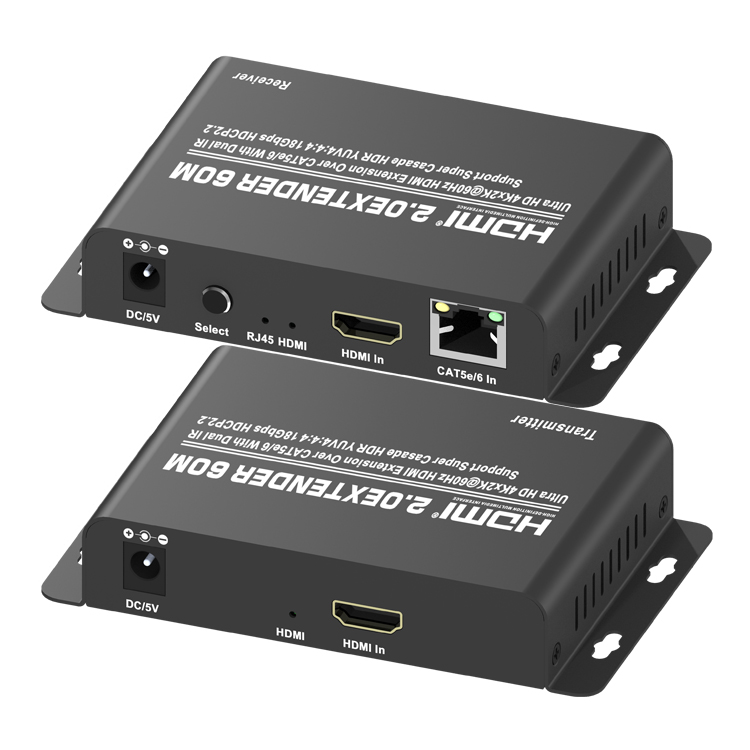

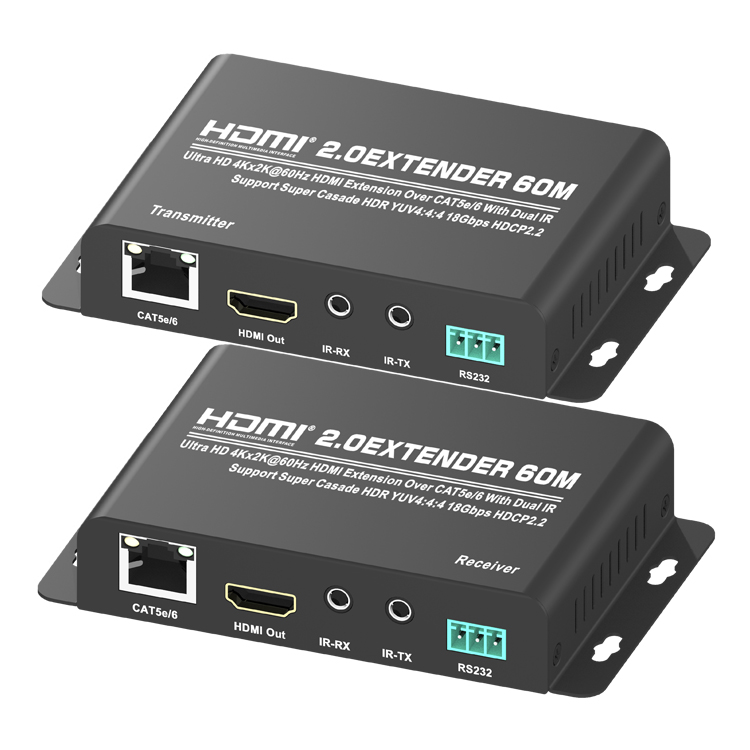

HDMI 2.0 Extender 60M with IR+Casade

1.0 Introduction

The HDMI2.0 60M HDMI extender uses one single Cat5e/6(recommended)

cable instead of HDMI cable,you can extend the 4K signal to 60 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

2.0 Features

1.Signal transmission :cat5e or cat-6(recommended) cables up to 60

   meters instead of HDMI cables are connected between TX and RX

   Extender;

2.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

3.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR

   4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

4.Support 3D frame sequential video format up to 1080p@60;

5.Support Multi-receiver cascade transmission;

6.Support 20~60KHz IR dual re-transmitting;

7.Audio format support :

   DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

8.Extend the transmission distance and improve transmission signal;

3.0 Packaging Accessories

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter ------------------1PCS

2.HDMI Receiver ---------------------1PCS

3.IR Receiver --------------------------2PCS

4.IR Transmitter -----------------------2PCS

5.Power supply-------------------------2PCS

6.User manual--------------------------1PCS
