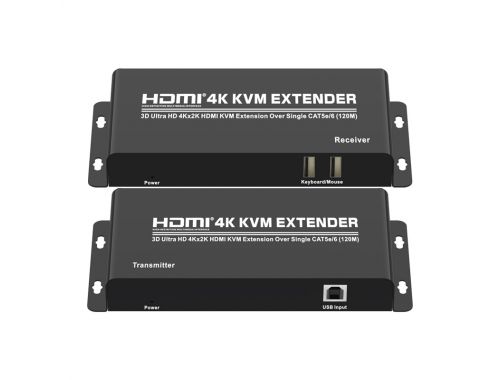

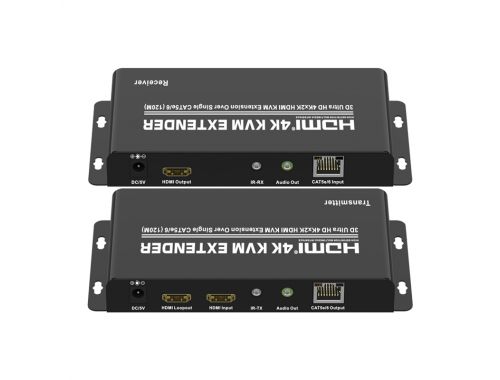

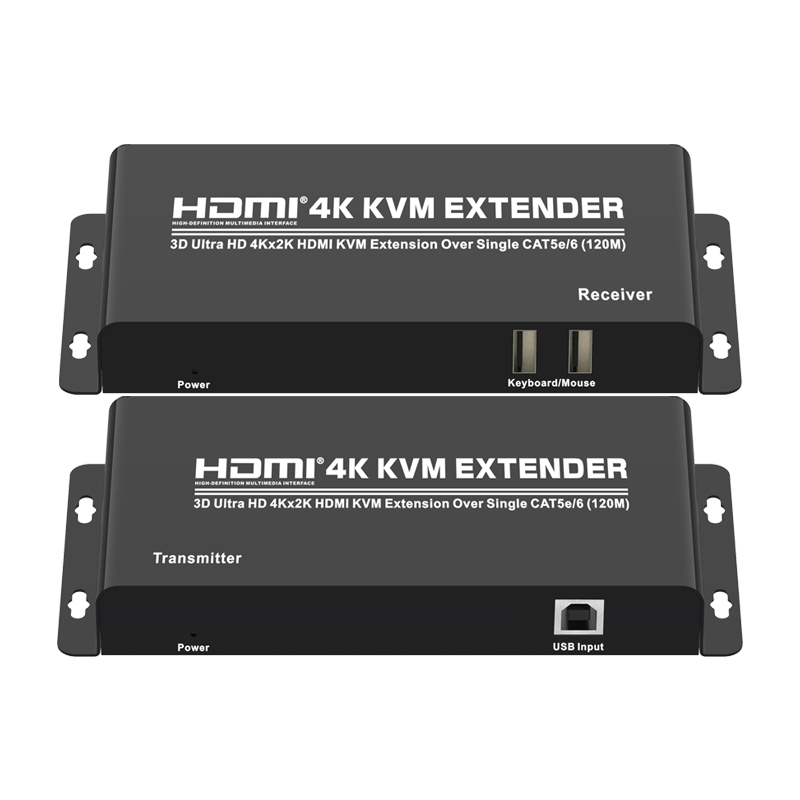

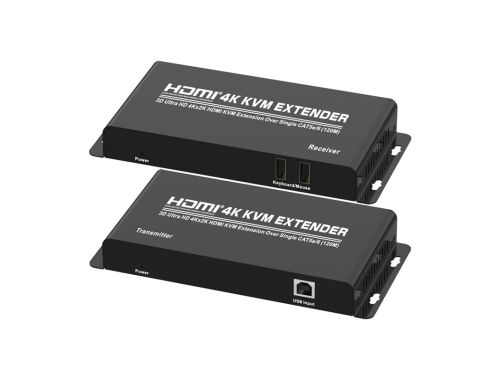

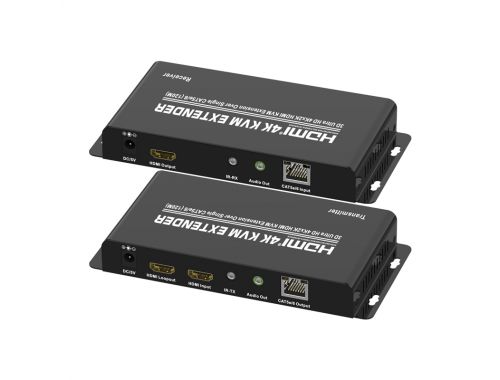

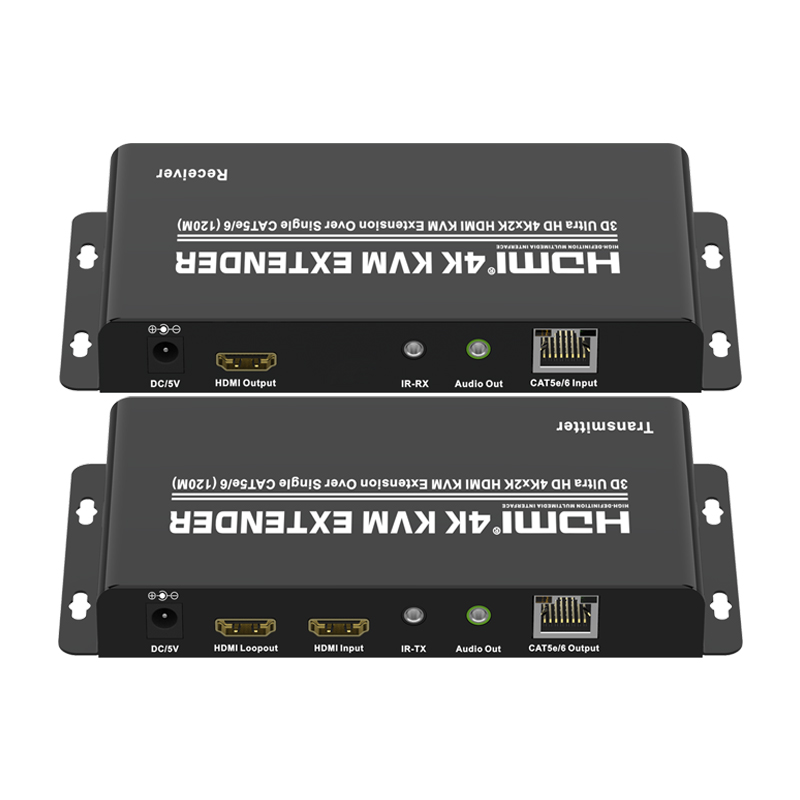

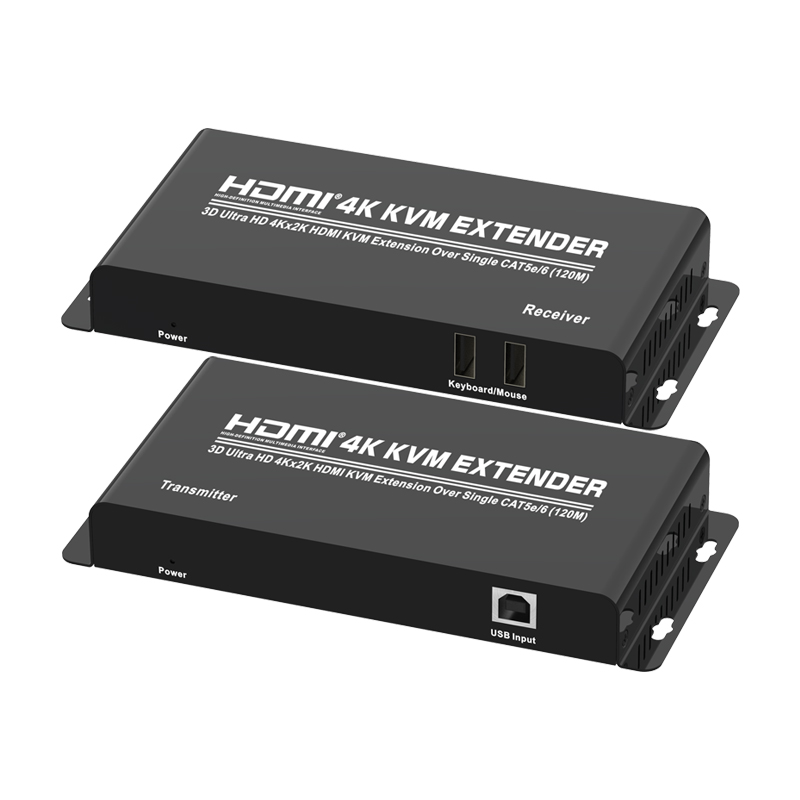

HDMI 4Kx2K KVM Extender 120M

1.0 INTRODUCTION

The HDMI KVM Extender use single cat-5e or cat-6(recommended) cables up to 120 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.

2.0 FEATURES

1.Signal transmission :CAT5e/6(recommended) cables up to 120 meters instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI 1.4.HDCP1.4.

3.Support input/output resolution:480i/p,576p,720p,1080i/p,4Kx2K@30Hz.

4.Support IR control, you can control STB or Blue-Ray DVD at receiving site by

  remote control.

5.Support IR remote control 20~60KHz,NEC.

6.Support TX of Extender with HDMI Loopout.

7.Support Transmitter and Receiver Audio Extract.

8.Support long distance controlled by keyboard and mouse.

9.The design of pure hardware, plug and play, no need for additional software.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Extender Transmitter ------------------------------------------------ 1PCS

HDMI Extender Receiver --------------------------------------------------- 1PCS

IR Transmitter ------------------------------------------------------------------ 1PCS

IR Receiver --------------------------------------------------------------------- 1PCS

5V DC Power Supply adapter --------------------------------------------- 2PCS

USB Data Cable----------------------------------------------------------------1PCS

Operation Manual ------------------------------------------------------------- 1PCS
