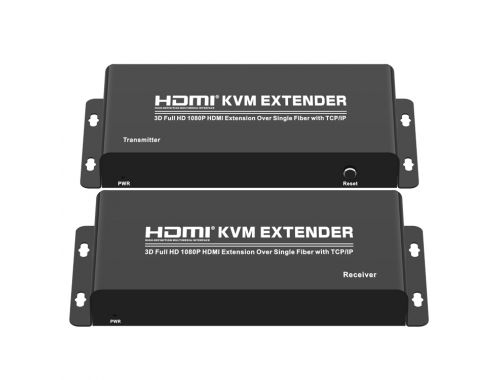

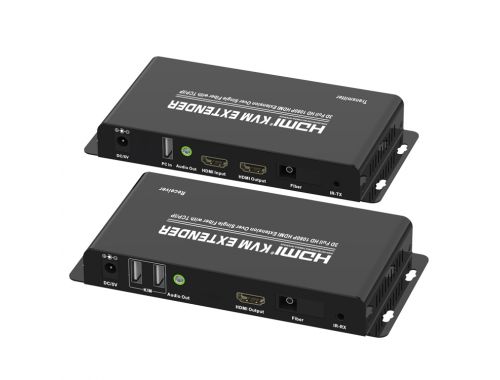

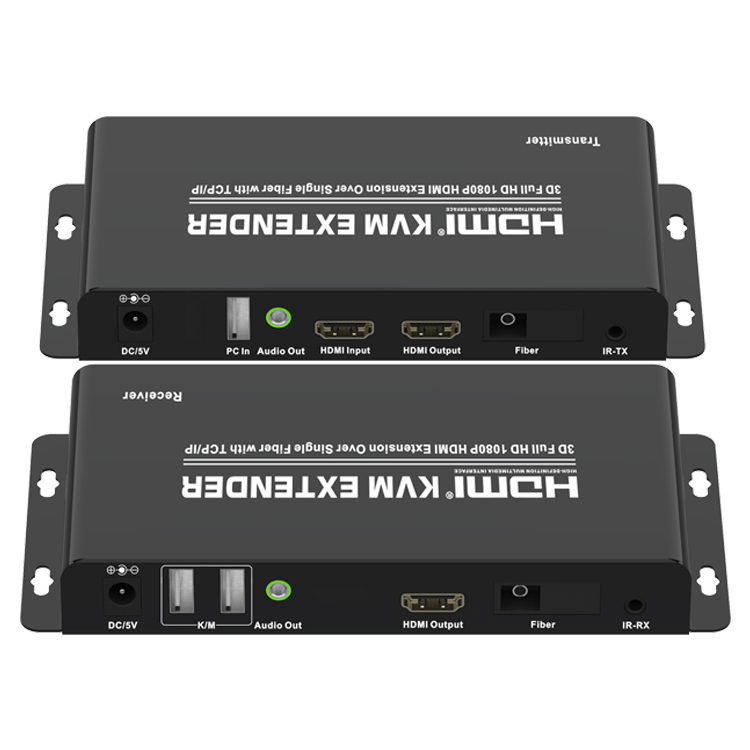

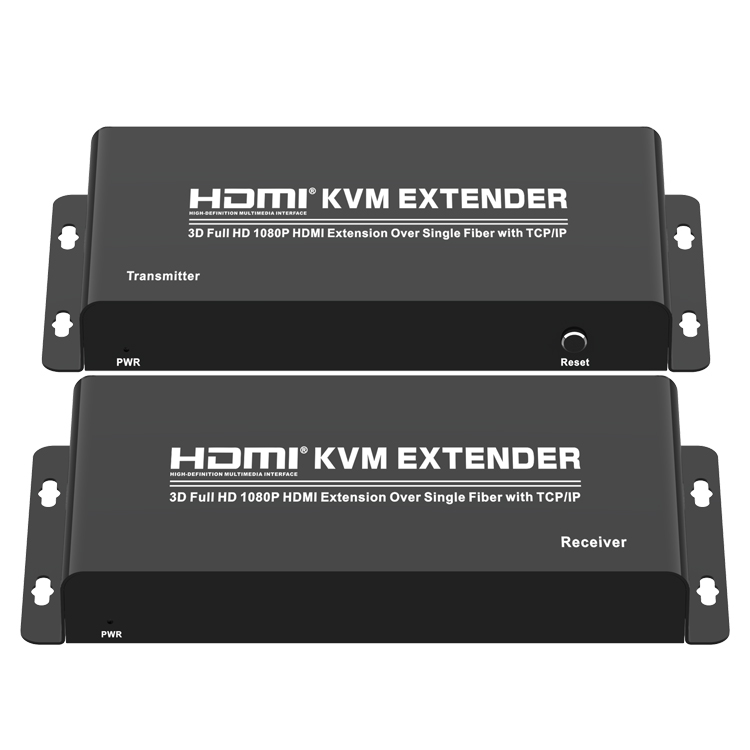

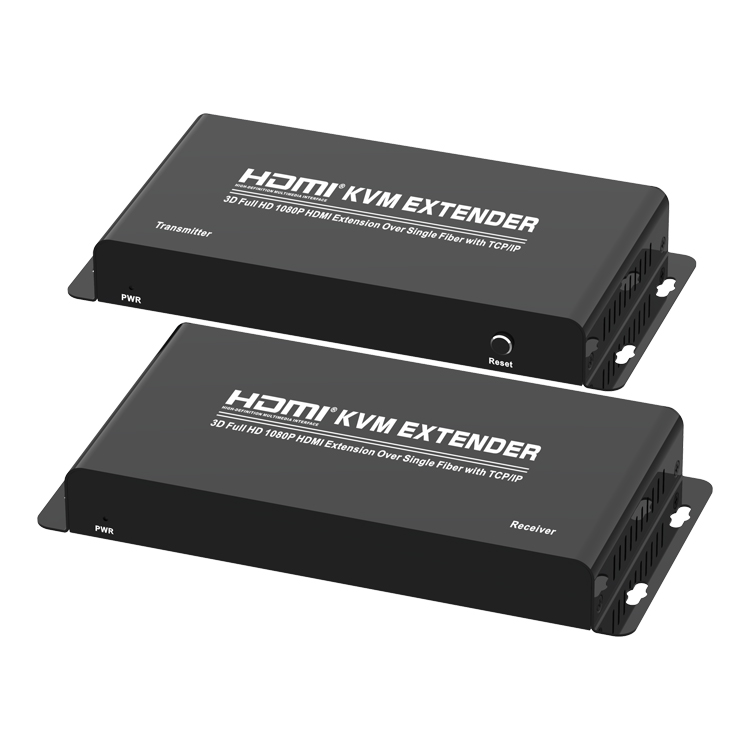

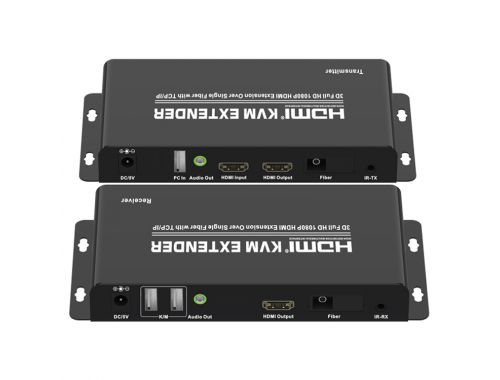

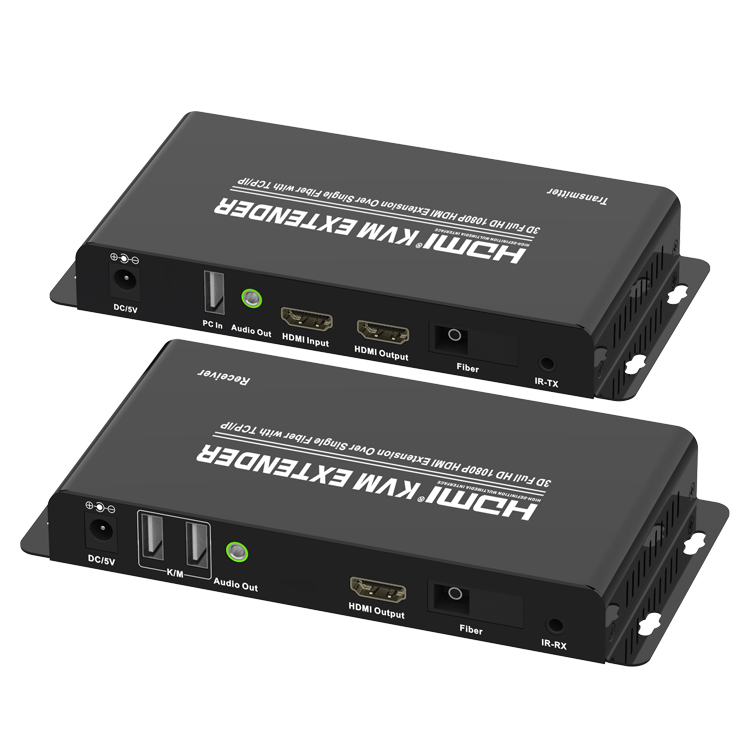

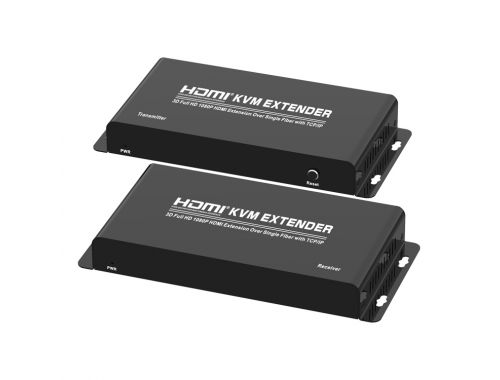

HDMI Fiber KVM Extender 20KM With TCP/IP

1.0 INTRODUCTION

This HDMI KVM Extender is based on TCP/IP standard. It transmits max 20KM from your HDMI or DVI-D source to HD display by single Fiber cable.

At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode.

2.0 FEATURES

1.Signal transmission :SC fiber(recommended) cables up to 20000

meters instead of HDMI cables are connected between TX and RX

Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support input/output resolution:480p,576p,720p,1080p.

4.Support point-to-point mode, one point-to-many mode.

5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum of 253 receivers.

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.

7.Support IR remote control 20~60KHz,NEC.

8.Support long distance controlled by keyboard and mouse.

9.Installs in minutes,No loss of quality.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Extender Transmitter ----------------------------------- 1PCS

HDMI Extender Receiver -------------------------------------- 1PCS

IR Transmitter ---------------------------------------------------- 1PCS

IR Receiver ------------------------------------------------------- 1PCS

5V DC Power Supply adapter ------------------------------- 2PCS

USB Data Cable--------------------------------------------------1PCS

Operation Manual ----------------------------------------------- 1PCS
