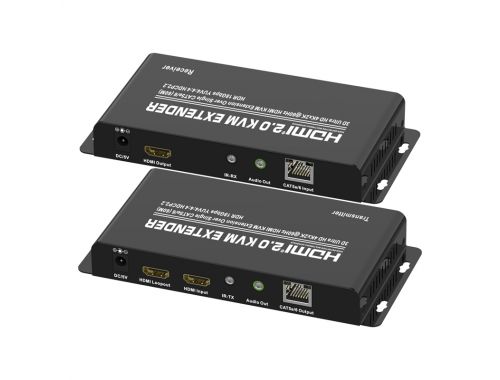

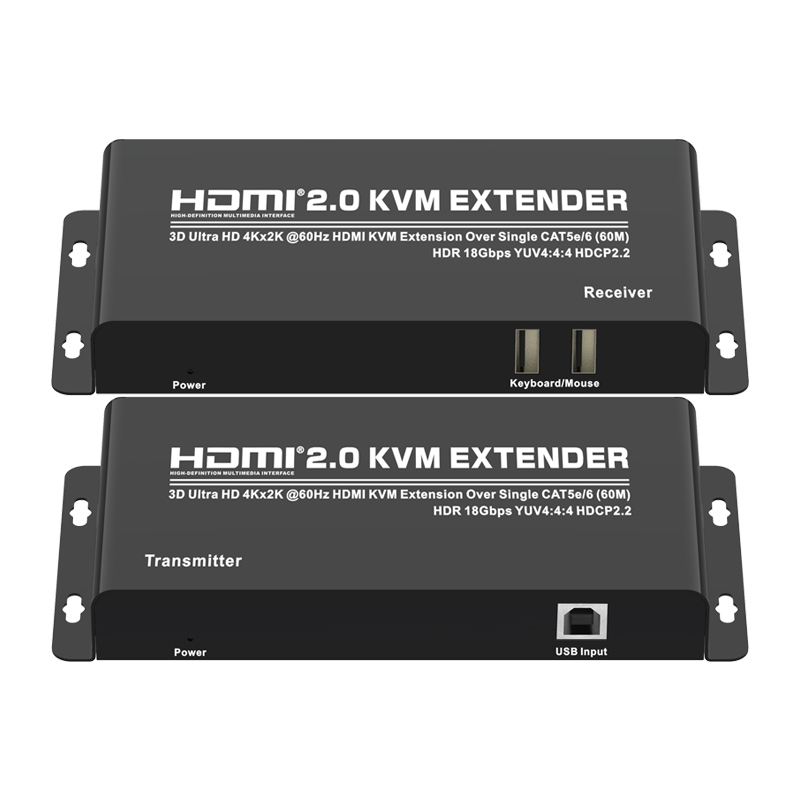

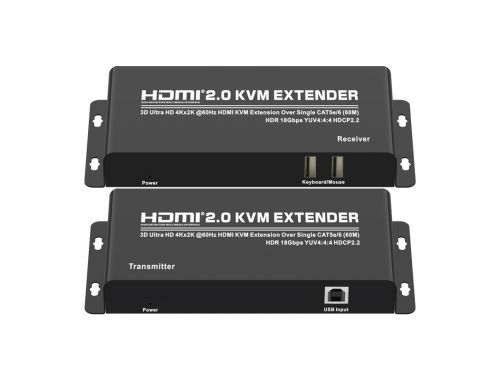

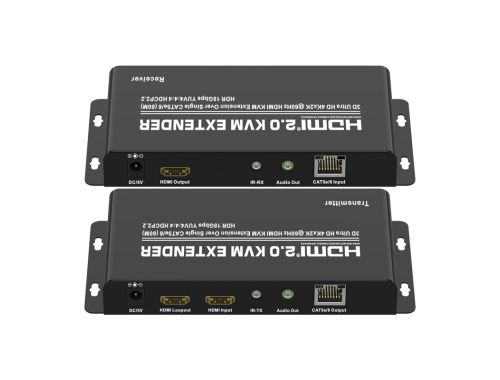

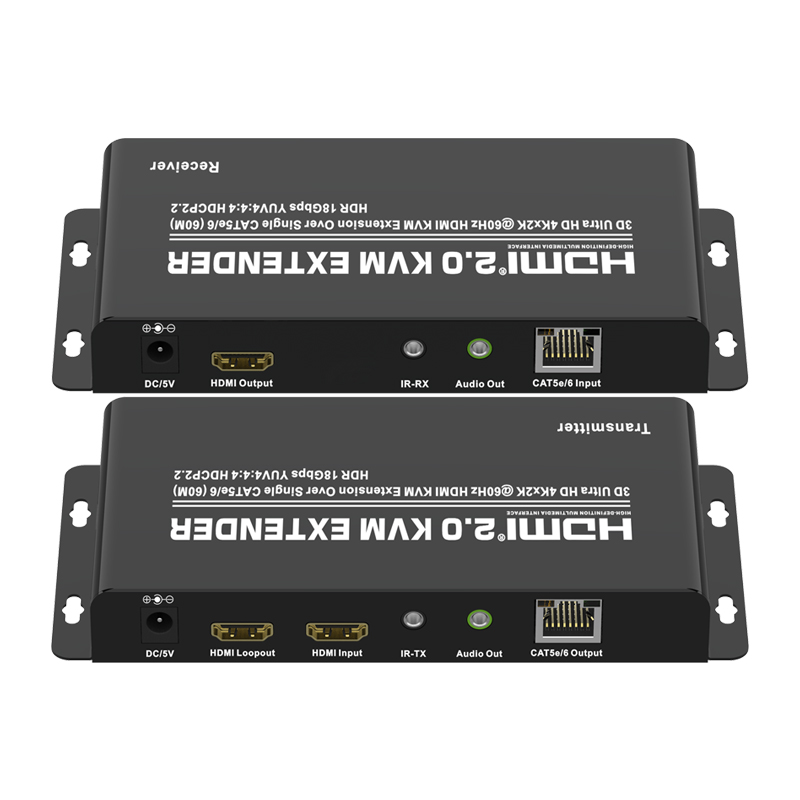

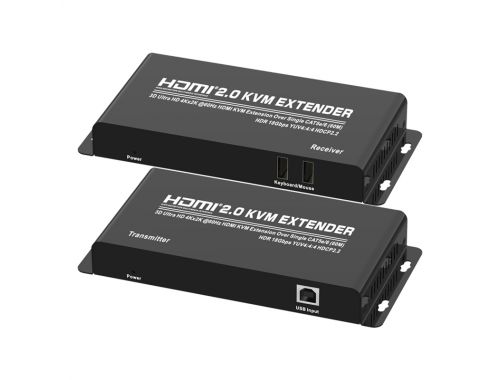

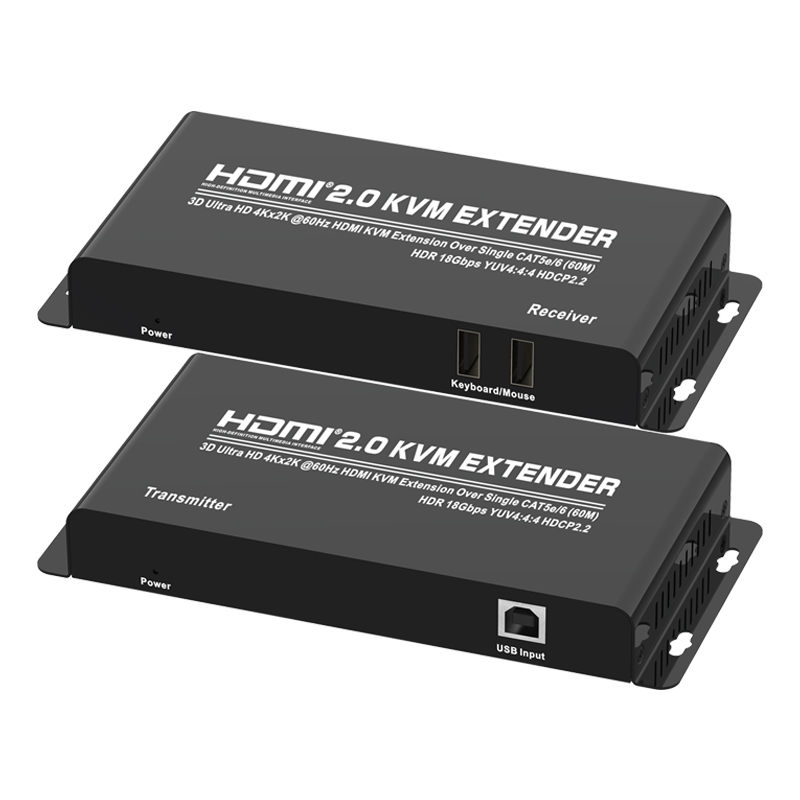

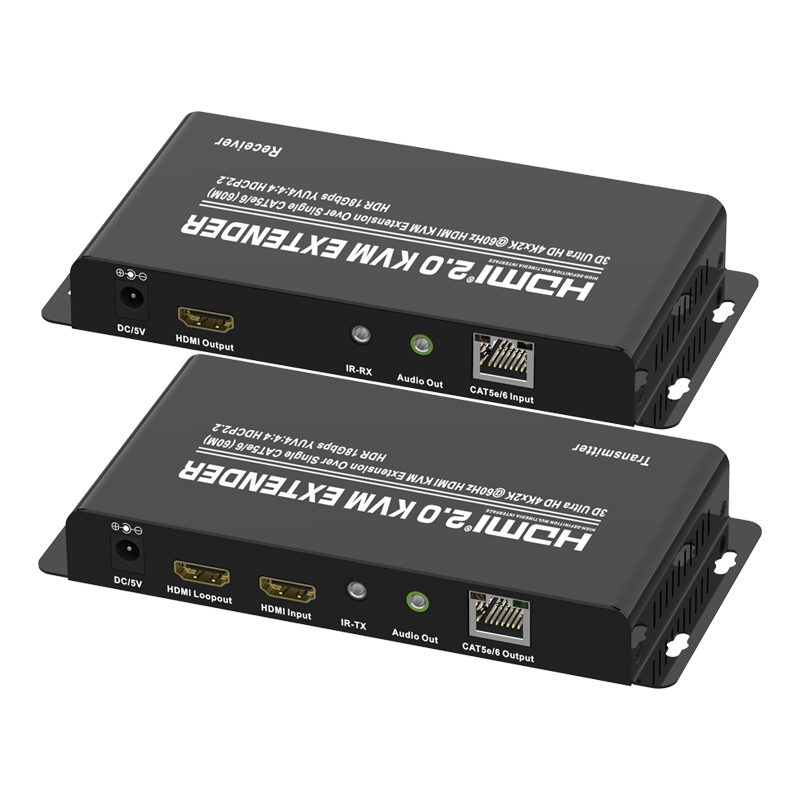

1.0 INTRODUCTION
The HDMI KVM Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.
2.0 FEATURES
1.Signal transmission :CAT5e/6(recommended) cables up to 60 meters
instead of HDMI cables are connected between TX and RX Extender.
2.Support HDMI2.0,HDCP2.2,HDR,18Gbps.
3.Support Input/Output resolution:
480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz.
4.Support TX of Extender with HDMI Loopout.
5.Support video format up to 4Kx2K@60Hz with 24bit RGB/YcbCR
4:4:4/YCBCR4:4:4,and up to 4Kx2K@60Hz with 12bit YCBCR 4:4:4.
6.Audio format support:
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
7.Support long distance controlled by keyboard and mouse.
8.Support IR remote control 20~60KHz,NEC.
9.Support Transmitter and Receiver Audio Extract.
10.Extend the transmission distance and improve transmission signal.
3.0 PACKAGE CONTENTS
When first unpacking your extender please check to see if the following items are included:
HDMI Extender Transmitter ------------------------------------------------ 1PCS
HDMI Extender Receiver --------------------------------------------------- 1PCS
IR Transmitter ------------------------------------------------------------------ 1PCS
IR Receiver --------------------------------------------------------------------- 1PCS
5V DC Power Supply adapter --------------------------------------------- 2PCS
USB Data Cable----------------------------------------------------------------1PCS
Operation Manual ------------------------------------------------------------ 1PCS
