HDMI KVM Extender 200M

1.0 INTRODUCTION

This HDMI KVM Extender is based on TCP/IP standard. It transmits max 200 meters from your HDMI or DVI-D source to HD display by single CAT5e/6 cable.

At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode.

2.0 FEATURES

1.Signal transmission :CAT5e/6(recommended) cables up to 200 meters instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI 1.3/HDCP1.1&1.2;

3.Support input/output resolution:480i/p,576p,720p,1080i/p;

4.Support point-to-point mode, one point-to-many mode and cascade

  connection mode;

5.802.3 Ethernet standard;

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by

  remote control;

7.The design of pure hardware, plug and play, no need for additional software;

8.Support IR remote control 20~60KHz,NEC;

9.Support long distance controlled by keyboard and mouse.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

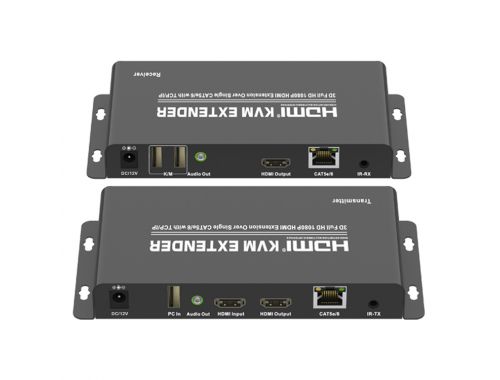

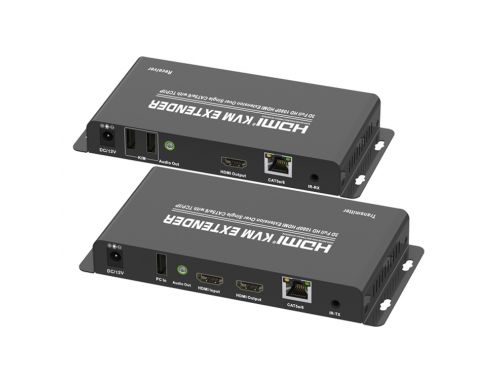

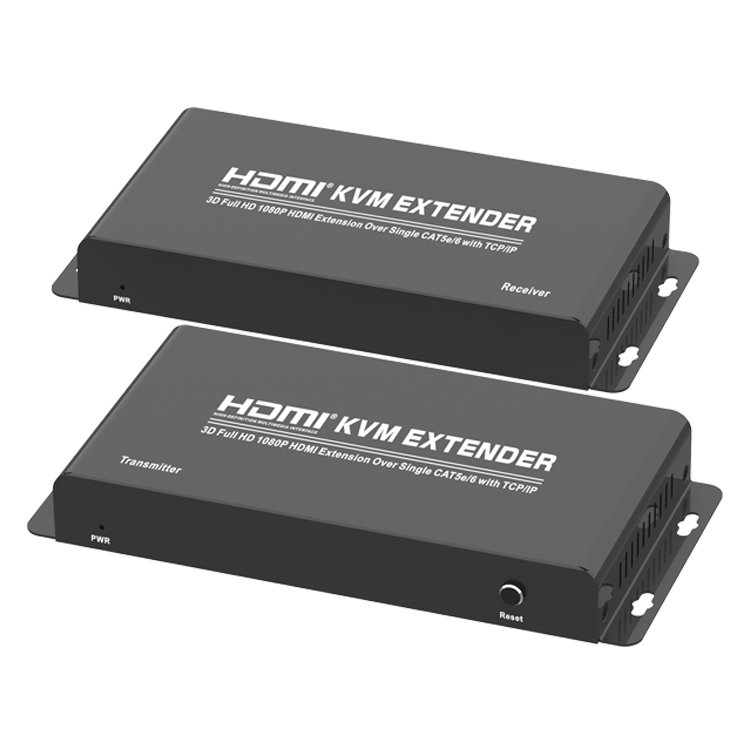

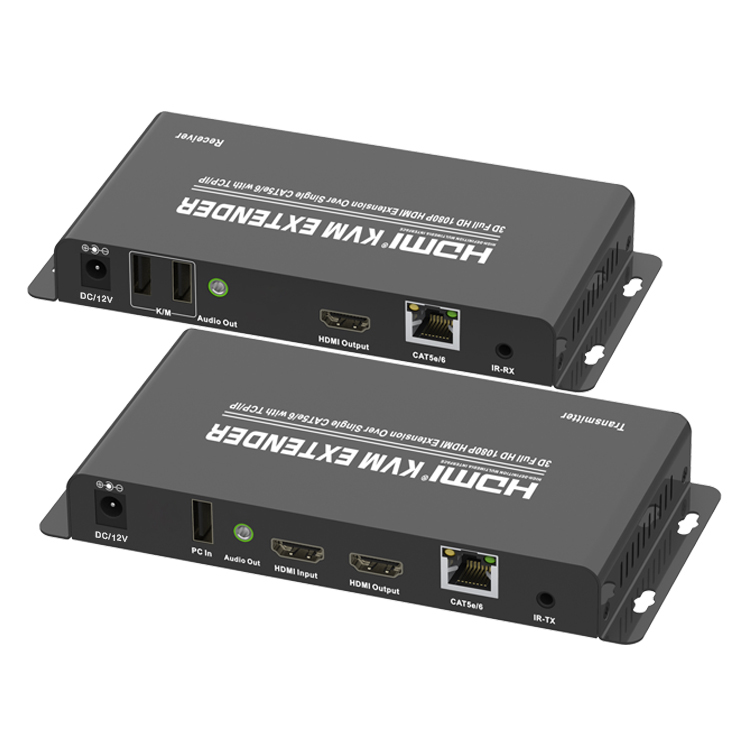

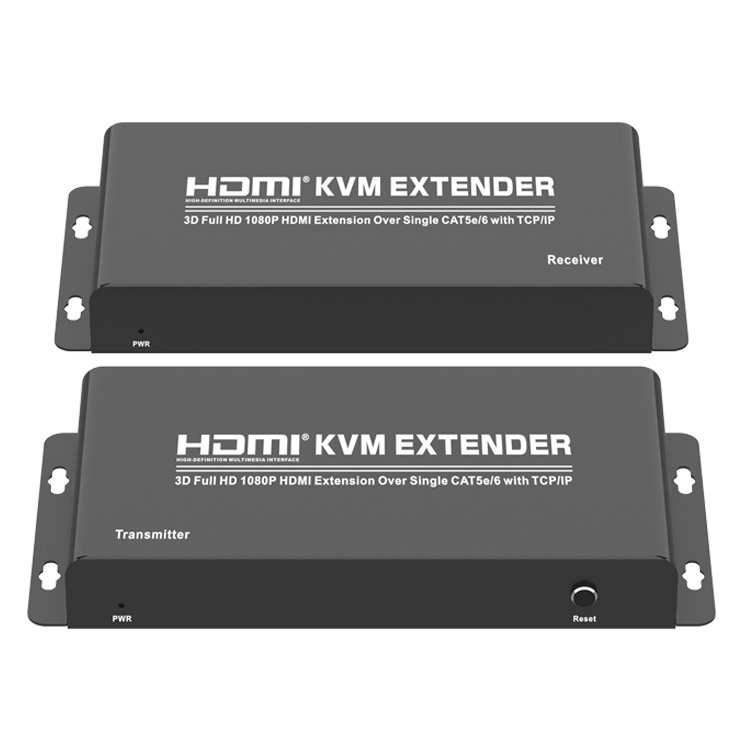

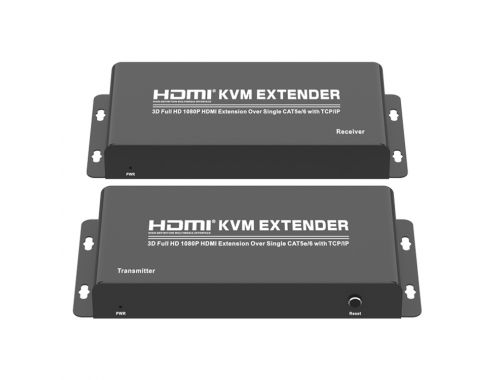

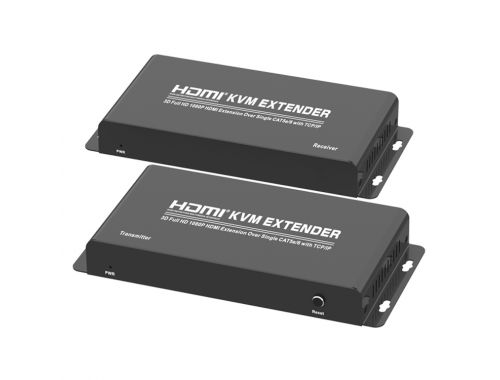

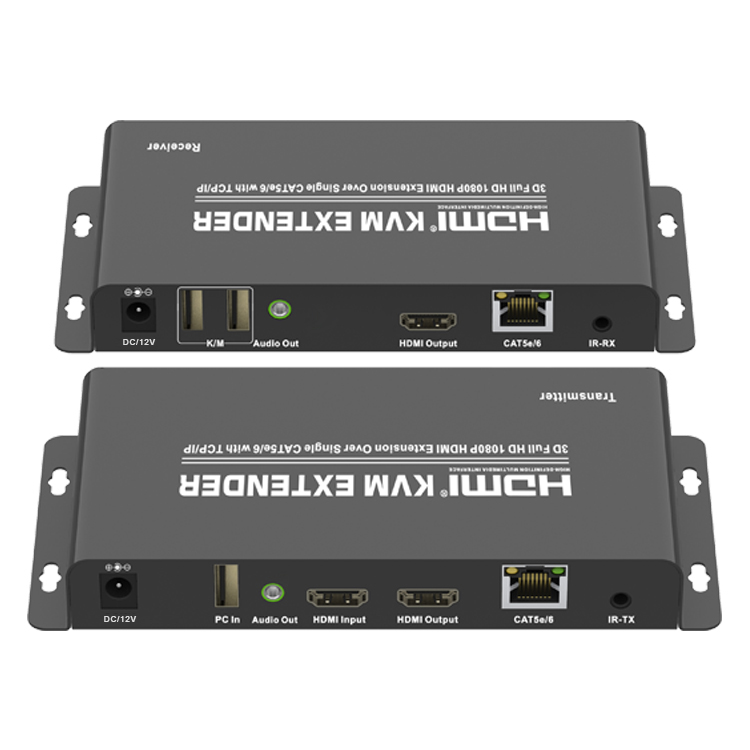

HDMI Extender Transmitter ----------------------------------- 1PCS

HDMI Extender Receiver -------------------------------------- 1PCS

IR Transmitter ---------------------------------------------------- 1PCS

IR Receiver ------------------------------------------------------- 1PCS

12V DC Power Supply adapter ------------------------------ 2PCS

USB Data Cable--------------------------------------------------1PCS

Operation Manual ----------------------------------------------- 1PCS
