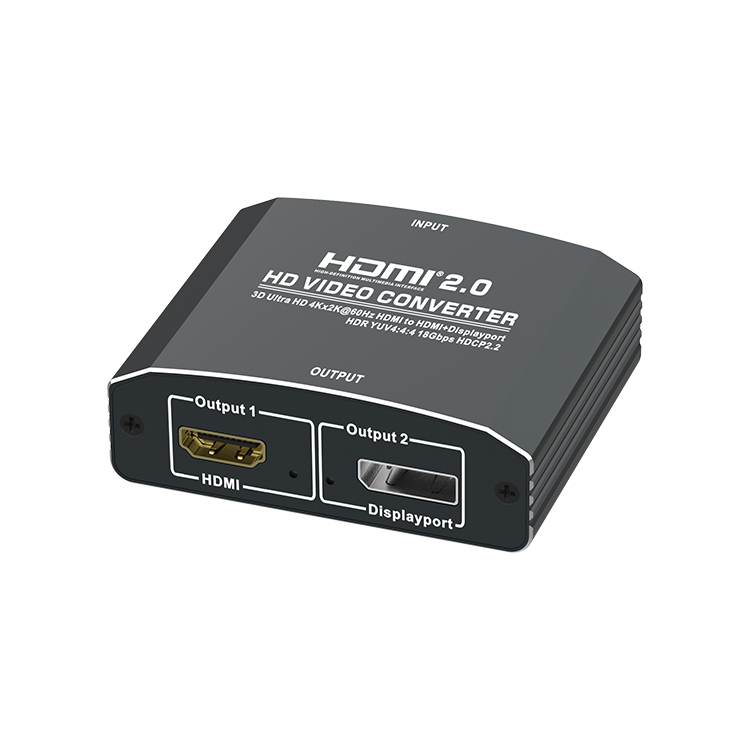

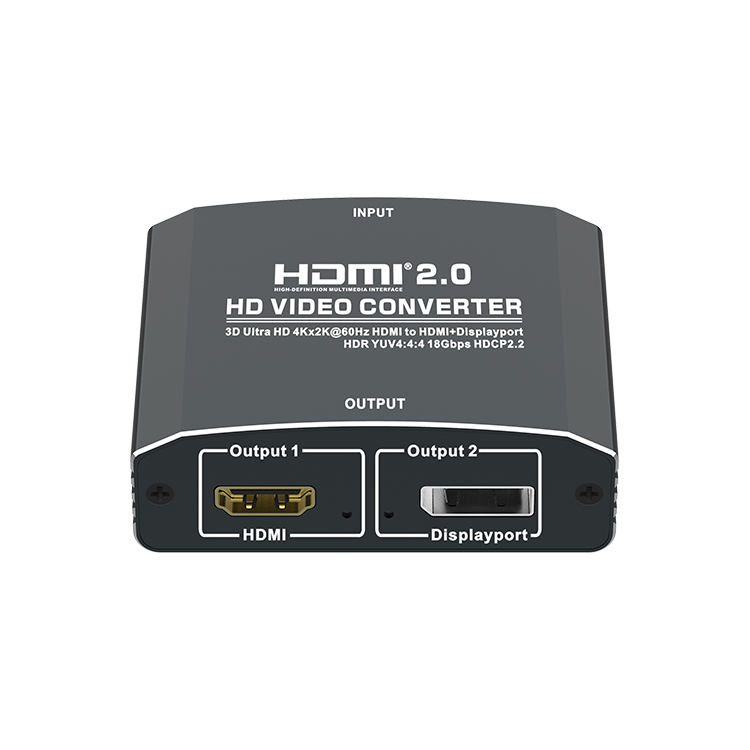

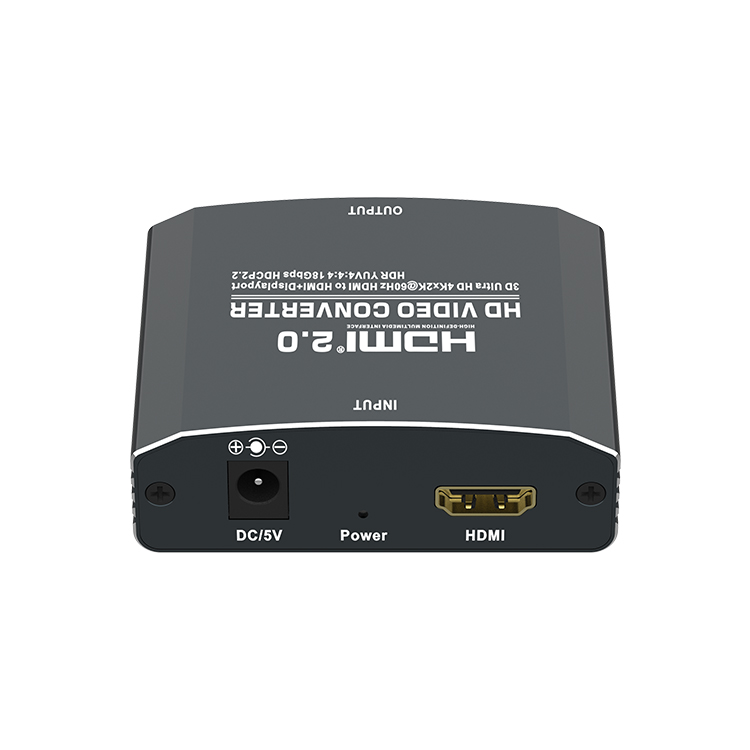

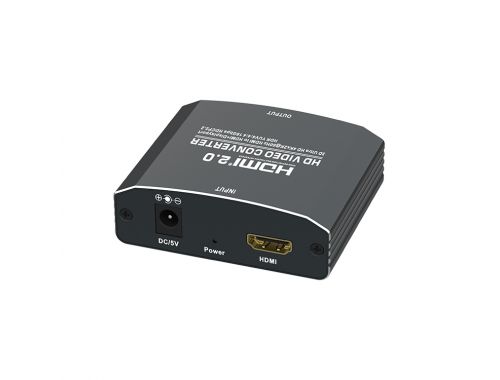

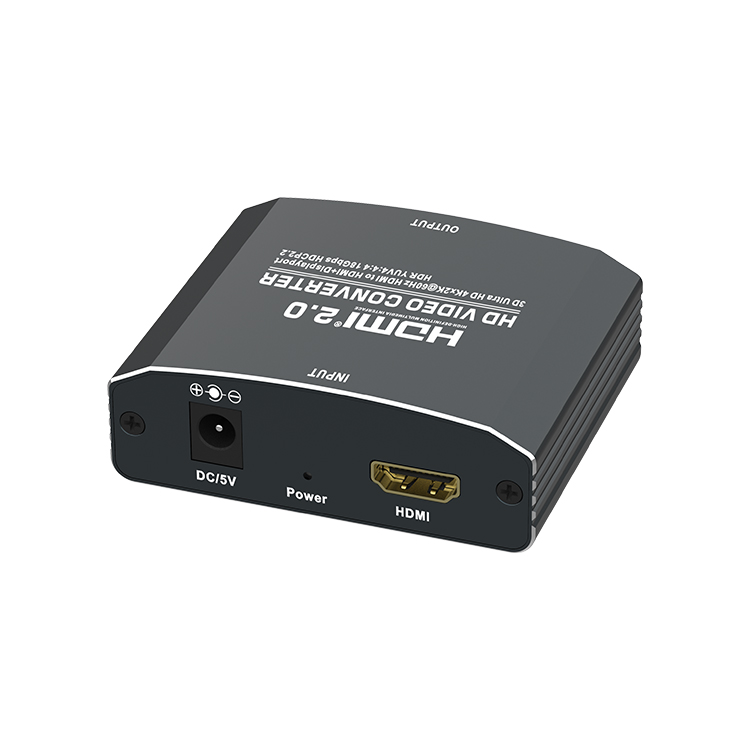

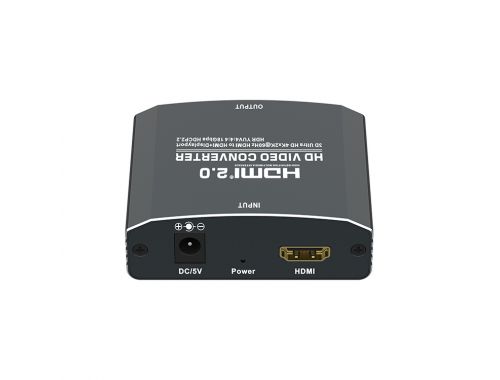

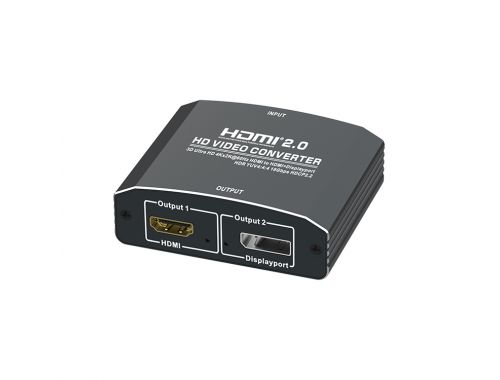

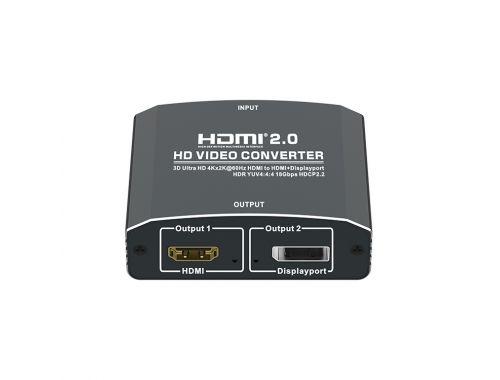

HDMI 2.0 to HDMI+DP Converter

1.0 INTRODUCTION

The converter converts a set of HDMI 2.0 signals into a set of HDMI signals and a set of Displayport signal sync outputs.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 FEATURES

1.Plug and play, Installs in minutes;

2.Support the HDCP2.2 protocol, Support for HDMI2.0;

3.Support HDR 18Gbps YUV4:4:4;

4.One HDMI input converted to HDMI+Displayport output;

5.Displayport output support DP1.2;

6.HDMI Input resolution: up to 4Kx2K(60Hz);

7.HDMI/DP Output resolution: up to 4Kx2K(60Hz);

8.Support HDMI and Displayport signal synchronization distribution.

3.0 PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:

1.Main unit----------------------------------1Pcs

2.User's Manual-----------------------------1Pcs

3.5V DC Power Supply----------------------1Pcs
