Scart+HDMI to HDMI Converter

1.0 INTRODUCTION

SCART/HDMI to HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P HDMI signal output, also it can connect with the high definition HDMI input interface, Easily connect with the DVD, set-top box, HD player, Game Console (PS2，PS3，PSP,WII,XBOX360 etc).

2.0 Basic function:

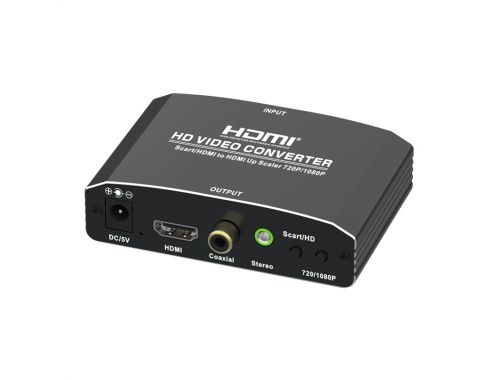

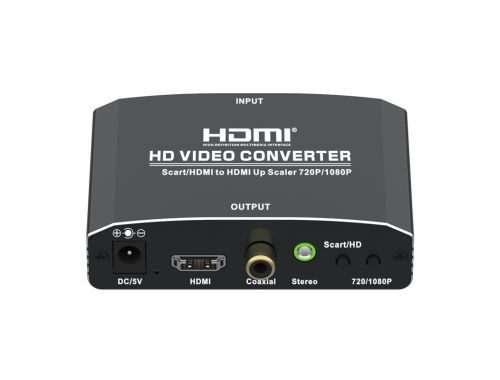

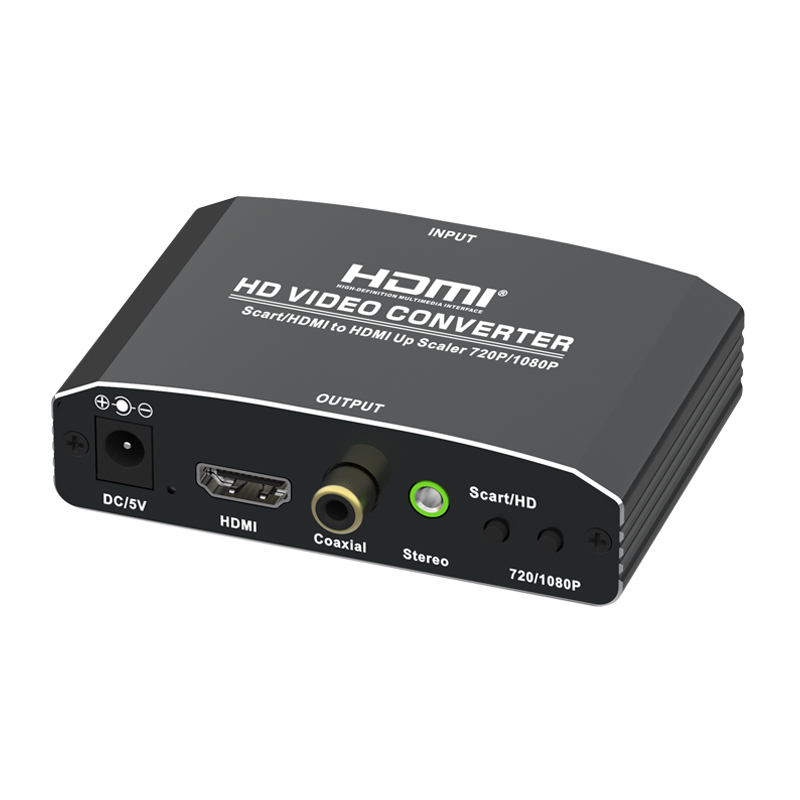

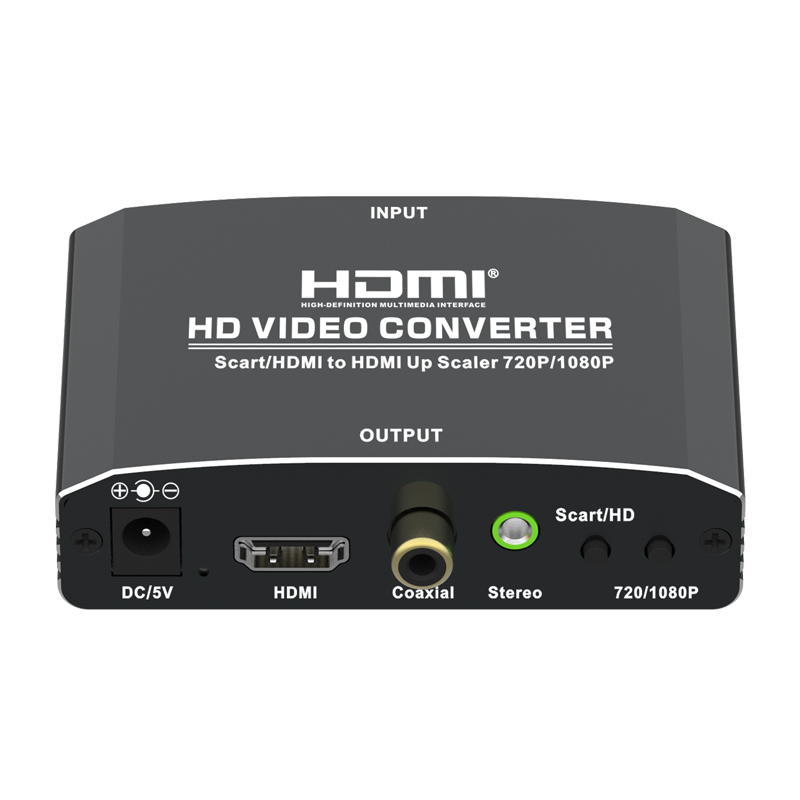

1) HDMI output interface: connect with high definition TV or high definition

   projector:

  HDMI output format:720P@50/60Hz, 1080P@50/60HZ

  Audio output format: Digital coaxial audio, analog stereo audio
2) CVBS input interface: DVD, set top box, PS2, WII, NGC and other players.

CVBS input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N

3) HDMI input format:

  480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz

  Compatible with several DVI format: 800X600、1024X768,1280X1024、

  1360X768, 1680X1050、1920X1080 etc.
4) 3.5mm audio interface: Connect with analog audio amplifier or headphones

input interface

5) Digital coaxial output: Connect with digital audio amplifier.

3.0 Features:

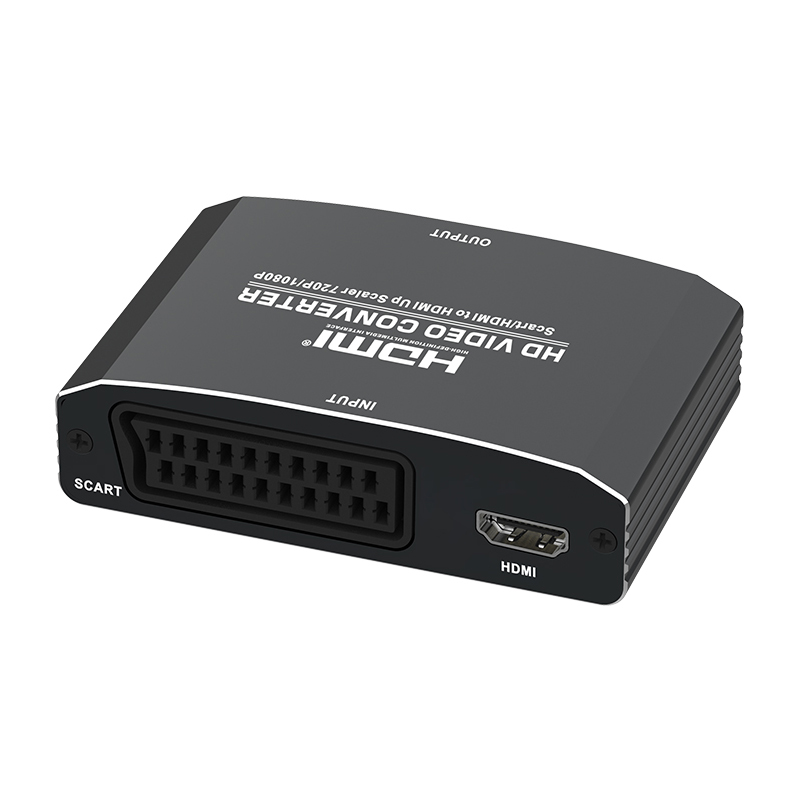

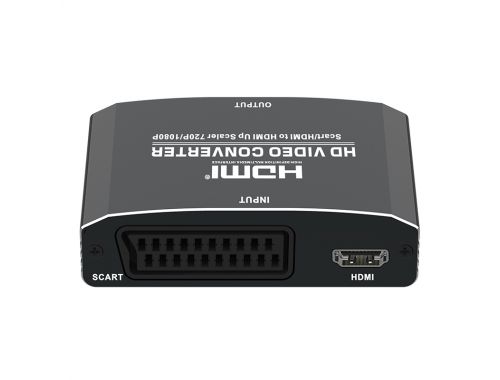

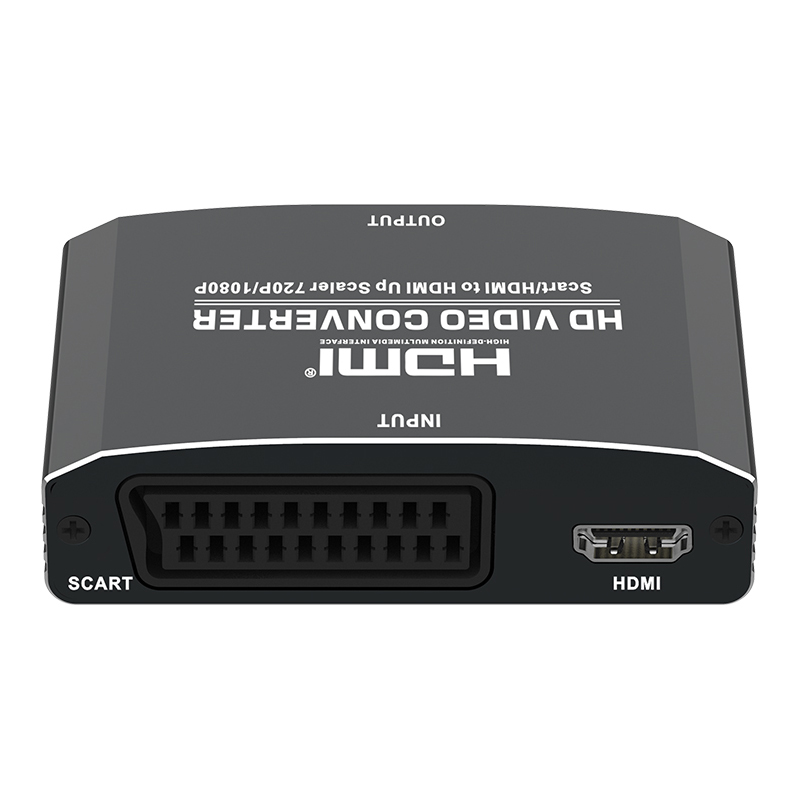

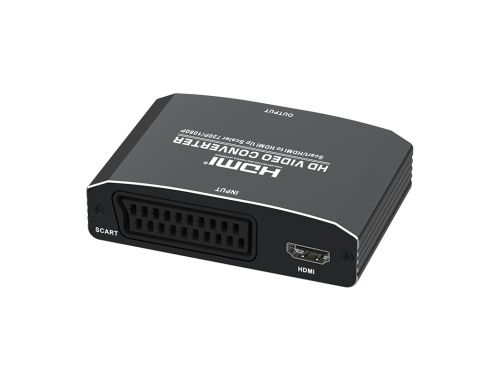

1) Scales SCART Signal (RGB or Composite Video) to HDMI 720p or 1080P;

2) HDMI output: 720P, 1080P;

3) SCART audio is integrated into HDMI out as well as pass-through to

  earphone or sound box output;

4) Automatically detect RGB(50/60Hz), Composite Video(NTSC/PAL);

5) Auto-store setting of output resolution.

4.0 Package contents

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1.Main unit ----------------------------------- 1PCS

2.5V DC Power Supply------------------------1PCS

3.User's Manual-------------------------------1PCS
