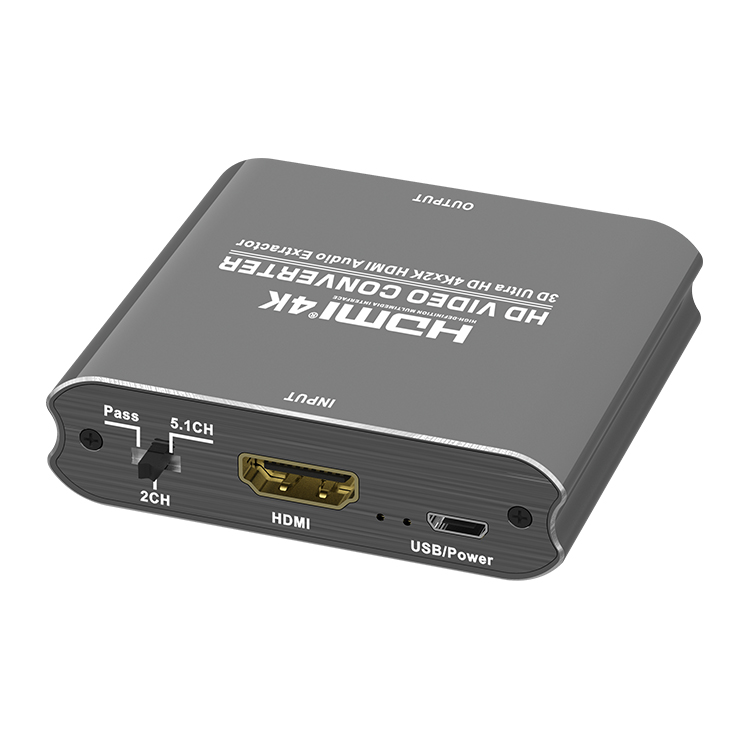

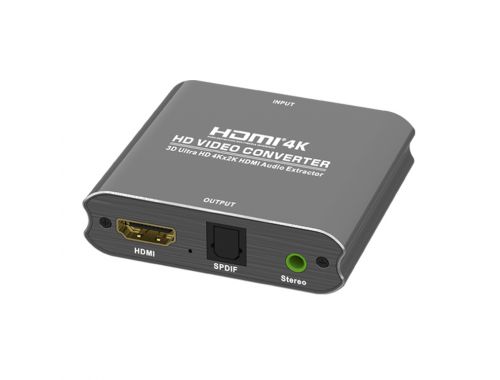

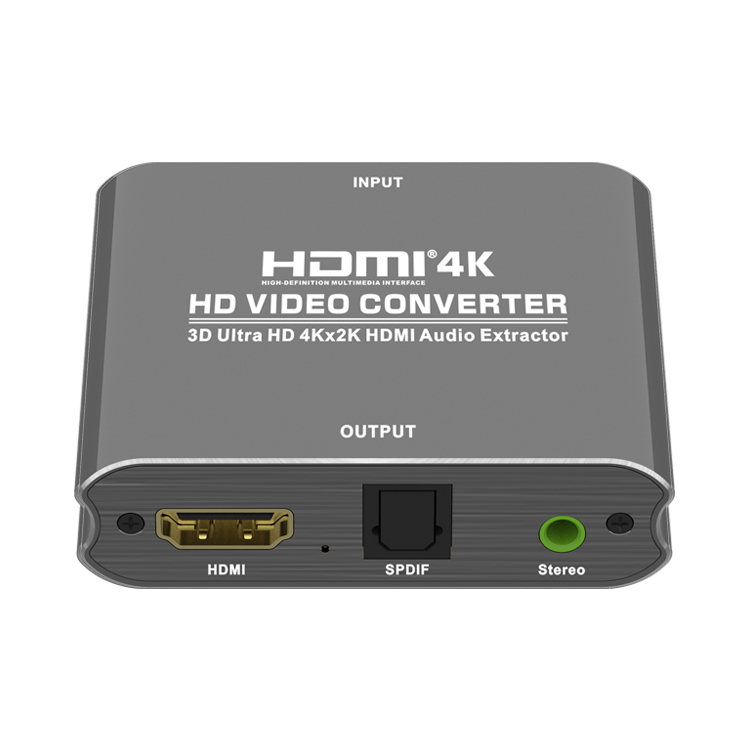

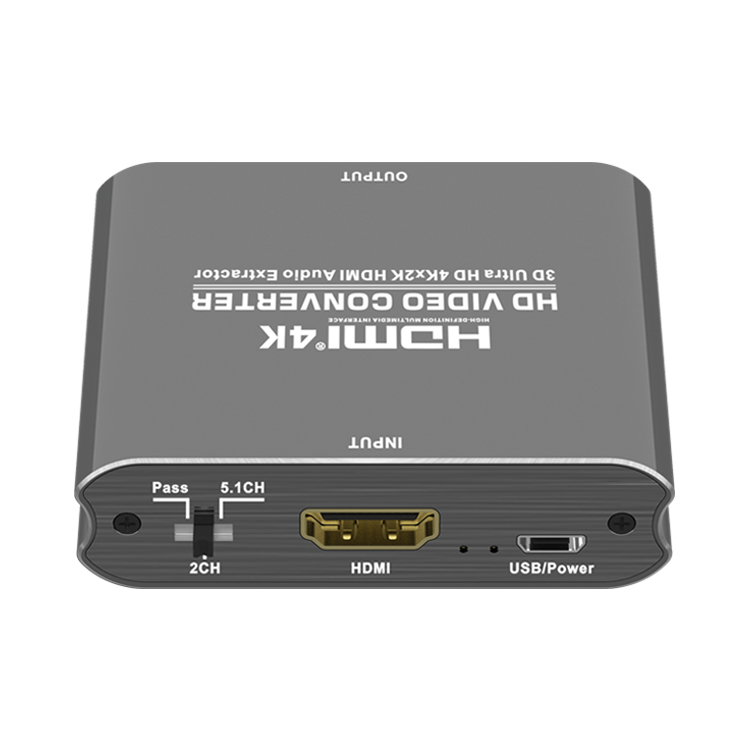

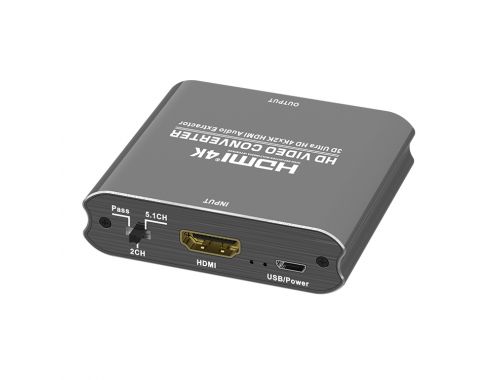

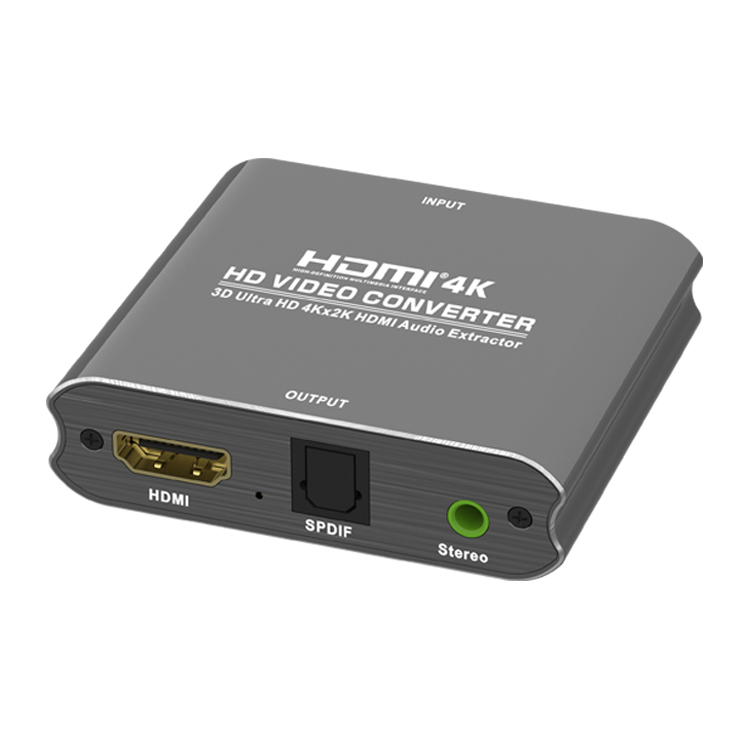

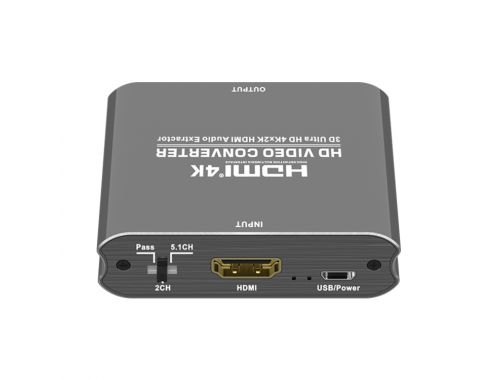

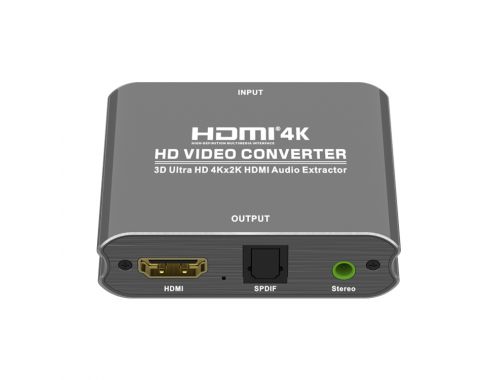

HDMI 4Kx2K Audio Extractor

1.0 INTRODUCTION

The converter allows the HD Source connected to single HD Display and adds extra one 3.5 Stereo and SPDIF/Coaxial audio out port.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 FEATURES

1.Plug and play, Installs in minutes;

2.Support the HDCP protocol, support for HDMI 1.4b;

3.One HDMI input converted to one HDMI+ Audio

(SPDIF+3.5(Stereo)+Coaxial) output;

4.Input/Output Resolution: up to 4Kx2K(25/30Hz);

5.HDMI to achieve the synchronization of audio signal separation;

6.Support select 2.0CH/5.1CH/by pass audio mode options;

3.0 PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:

1.Main unit----------------------------------1Pc

2.User's Manual---------------------------1Pc

3.USB Power Cable----------------------1Pc

4. Audio Cable---------------------------- 1Pc
