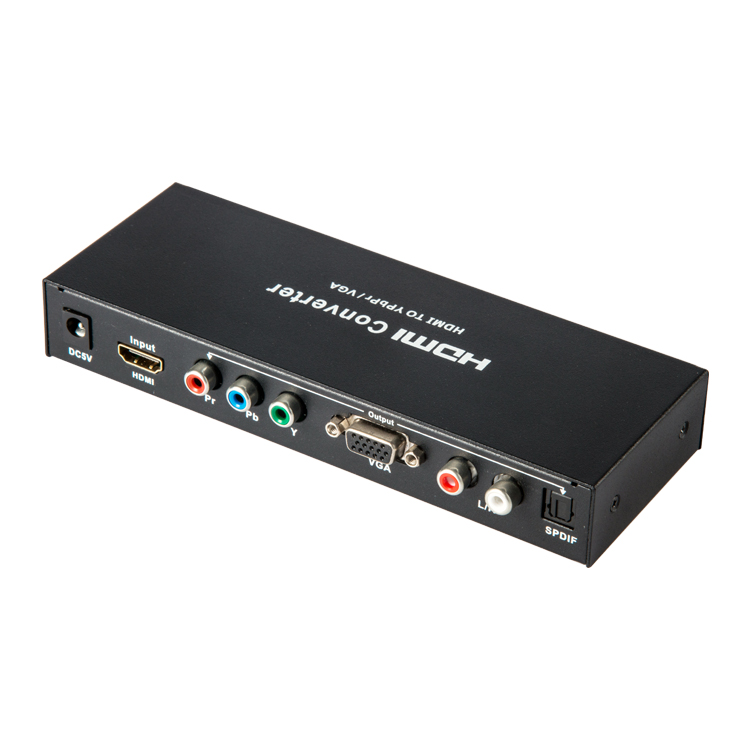

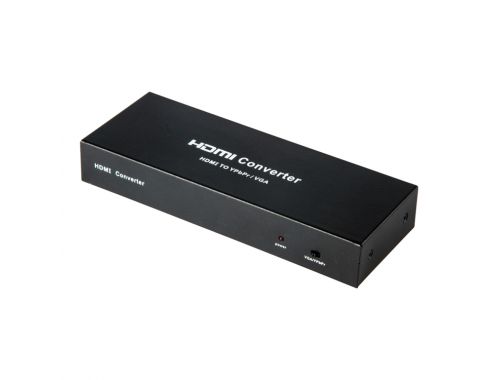

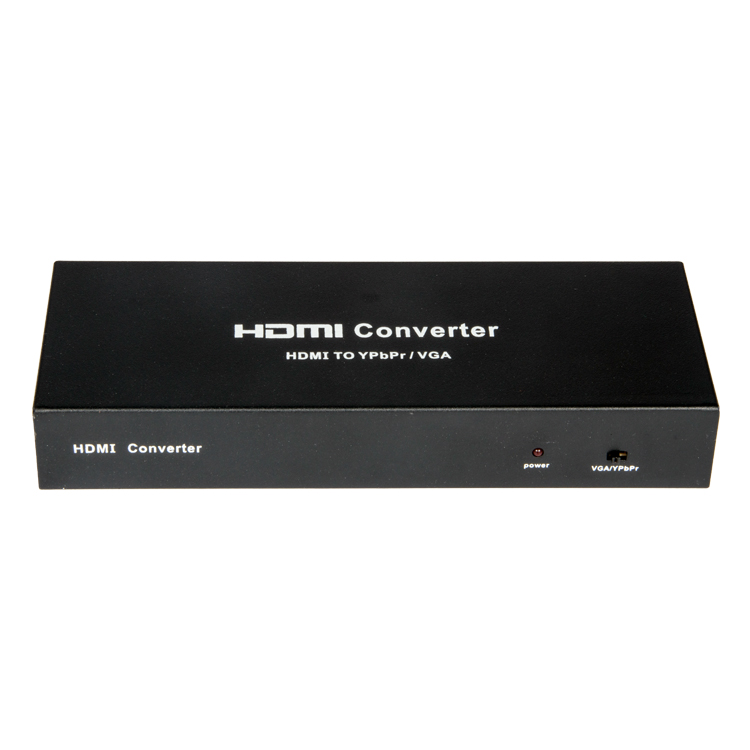

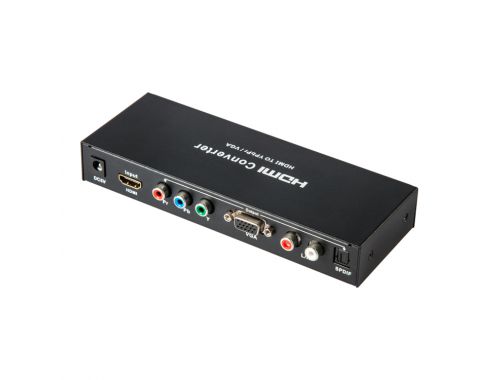

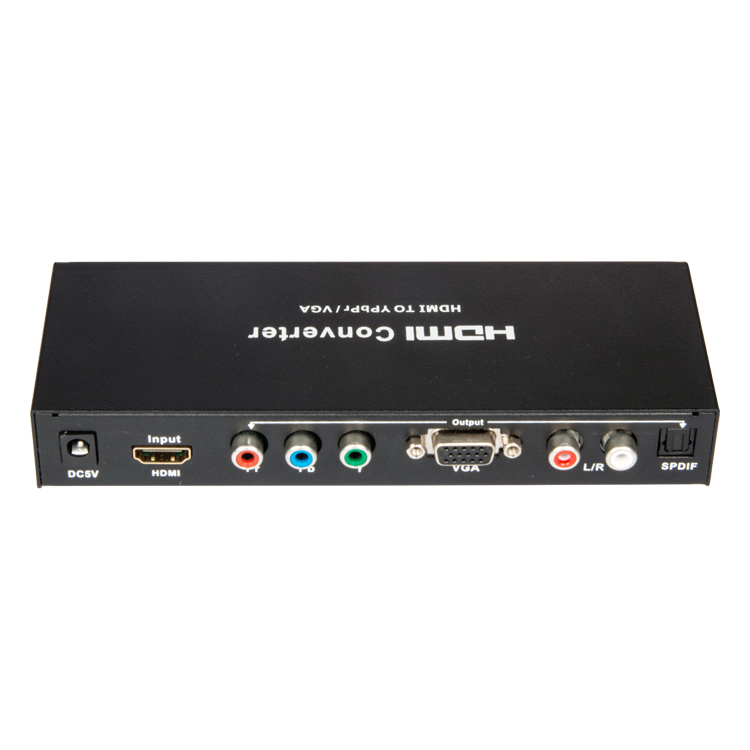

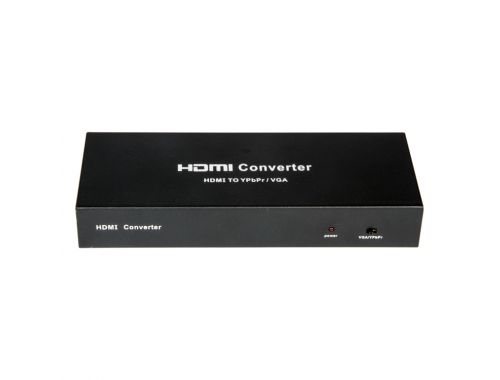

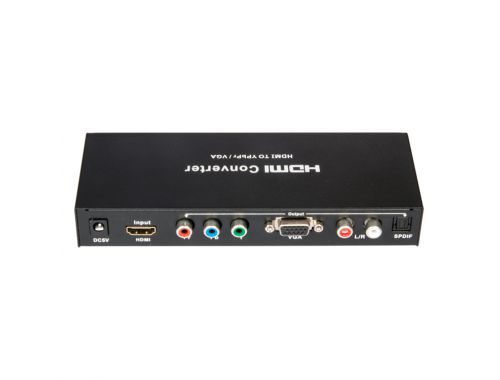

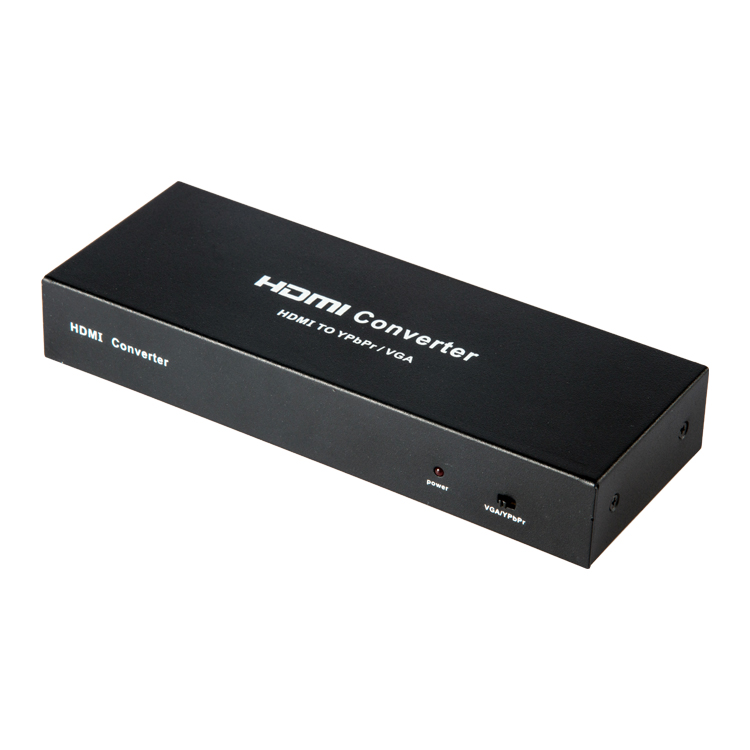

HDMI to YPbPr/VGA+SPDIF Converter

1.0 Introduction

The Converter use a single HDMI source, accessing to single VGA+SPDIF sink or single YPbPr+SPDIF sink. The Converter allows one HDMI device to be converted easily to one VGA+SPDIF or one YPbPr+SPDIF monitor or projector.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 Features

1. One HDMI input signal convert to one YPbPr+SPDIF or VGA+SPDIF sink

  device.

2. Support audio output: SPDIF(Optical)+ R/L analog .

3. Support output : Support up to UXGA and 1080I(50/60Hz),the same format

  as input.

4. LED indication: when source or sink is working, LED relative to is light.

5. No loss of quality

6. Installs in minutes

7. Need DC5V/1A power supply

3.0 PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1、Main unit ------------------------------------- 1PCS

2、5V DC Power Supply--------------------------1PCS

3、User's Manual---------------------------------1PCS
