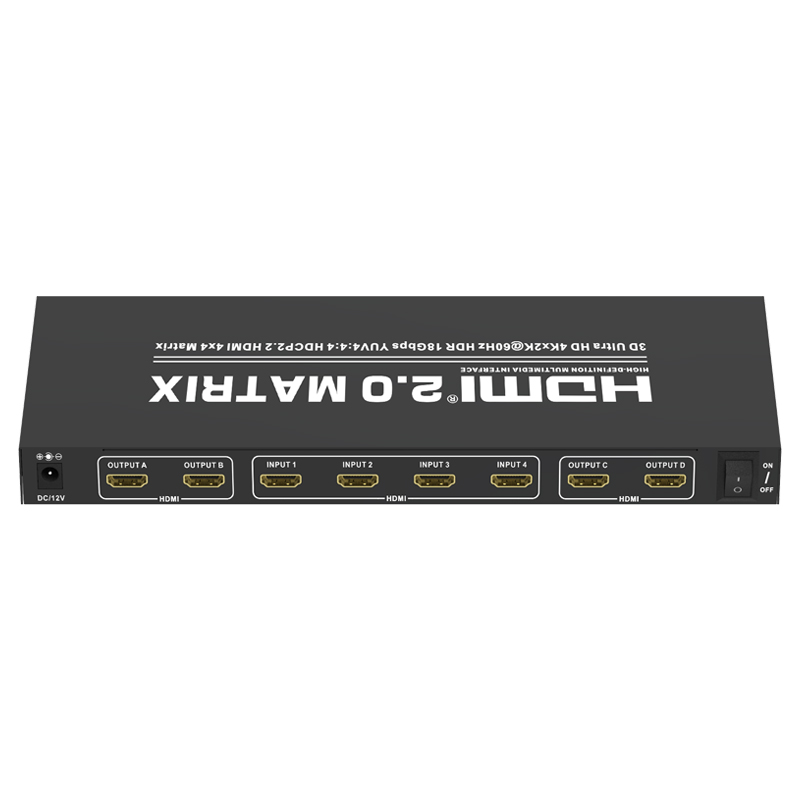

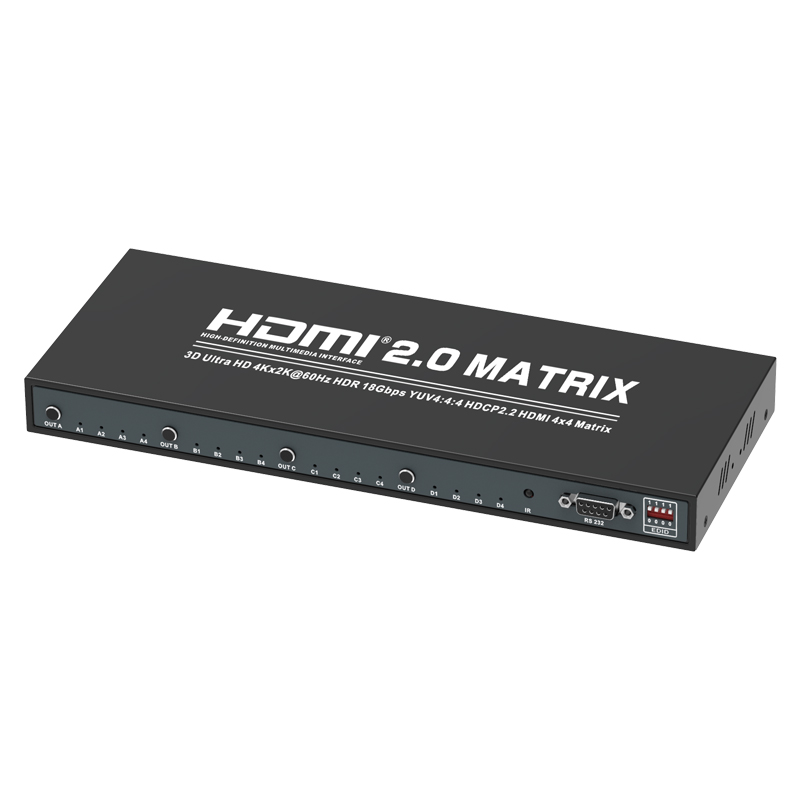

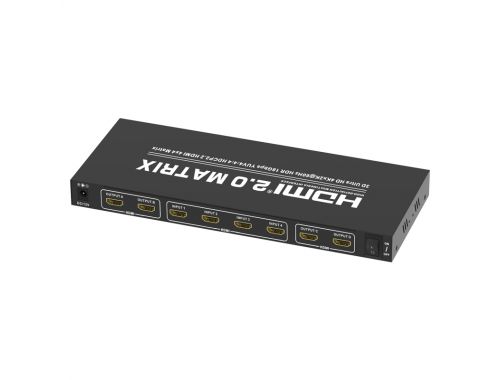

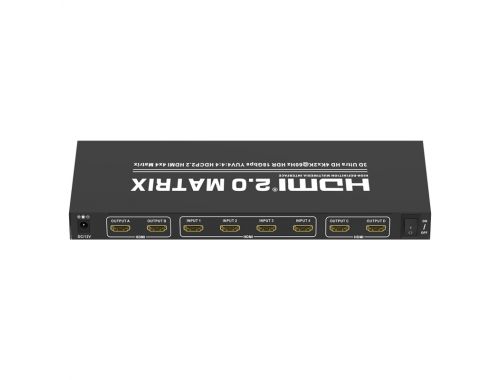

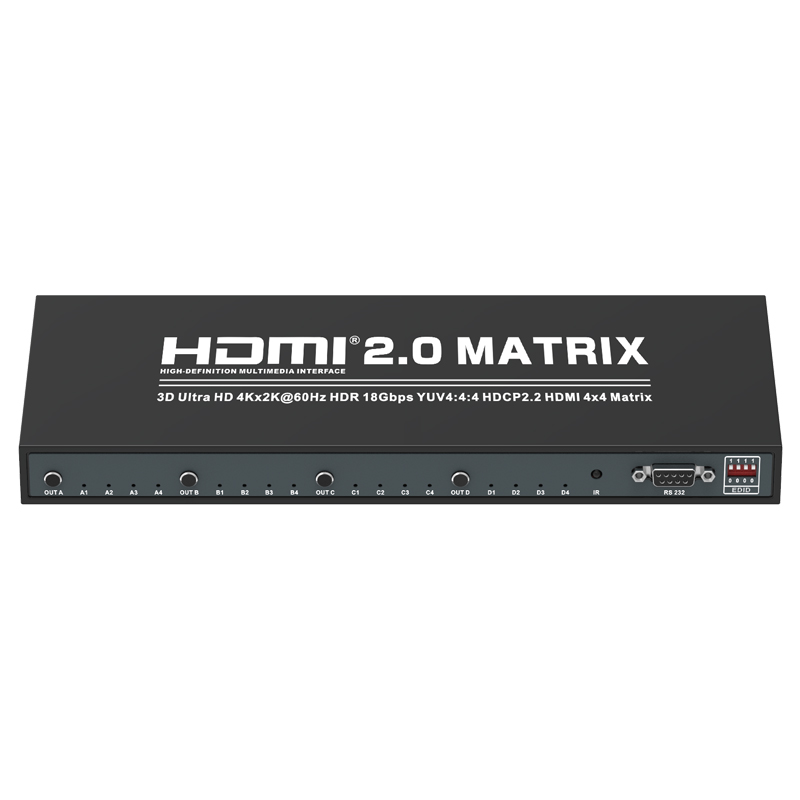

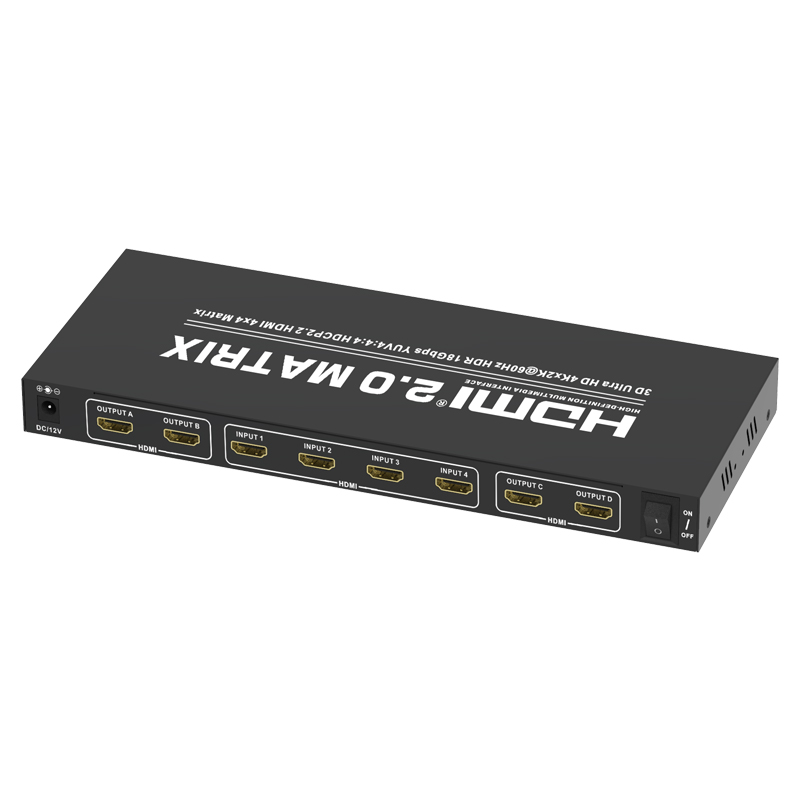

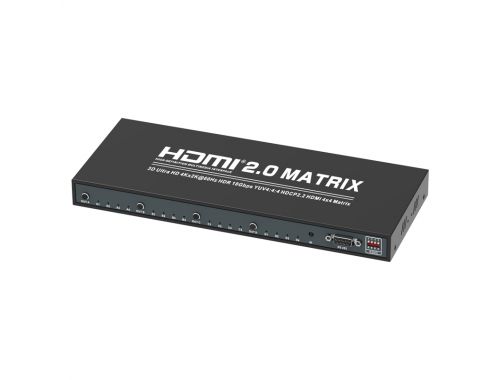

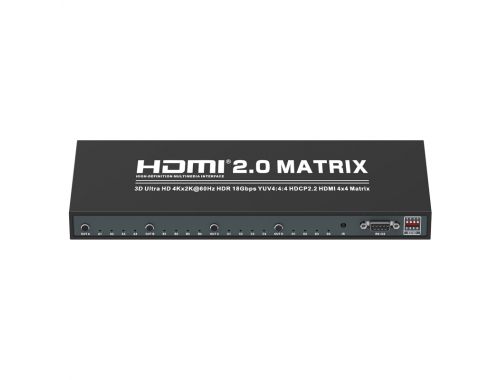

HDMI 2.0 Matrix 4x4

1.0  INTRODUCTION

HDMI Matrix is a perfect matrix product with detached external audio output ports, which can connect 4 different HDMI signal sources and 4 displays. It can easily switch any 1 or 2 of 4 input signals to 4 displays by using remote control or pushing button. The output signals can be same or different. By using this product can avoid the need to disconnect and reconnect signal sources to displays frequently. It can smartly select input signal sources with priority order and jump over those input signal sources which are not in work. It can optimize your home theatre system to the best effect.

2.0 FEATURES

1.When its 4 input ports are separately connected to 4 signal sources

with HDMI cables, the HDMI Matrix automatically recognizes the last

connected port and switches its input signal to 4 displays;

2.The needed input signal sources must be selected by using remote

control or pushing button in order to make 4 displays showing 4 different

Signals;

3.Support HDMI2.0,HDCP2.2;

4. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR

   4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

5. Switch easily between any 4 HDMI sources.

6. The 4 displays can get the same or different signals without mutual

interaction.

7. Connected easily to dual-channel audio receiver device.

8. Support DVI device with DVI to HDMI adapter.

9. Plug-and-play and no need of setting.

10. Metal casing design and overall shielding without signal interference.

11. Use remote control or push button to freely select input source.

12. LED indicates signal /power mode.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 4X4 Matrix ------------------------1PCS

2.DC 12V Power adapter-------------------1PCS

3.Remote control---------------------------1PCS

4.User Manual------------------------------1PCS
